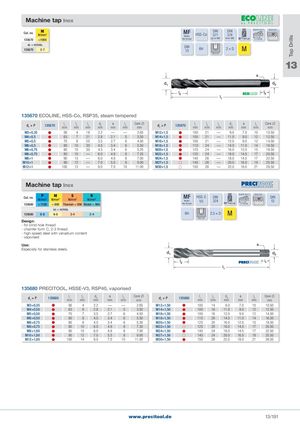

	M	MF		DIN	DIN		Chamfer form C	Metric fine
Cat. no.			HSS-Co	371	374			60°
		Metric
135670	<1000	fine thread		up to M6	from M8	35°Twist	L
							2-3 threads
vc = m/min.		DIN				M
135670	3-7		6H		2 × D

13 Blind hole 13

135670 ECOLINE, HSS-Co, RSP35, steam tempered

d1× P	135670	l1 mm	l2 mm	l4 mm	d2 mm	a mm	l3 mm	Corex mm	d1× P	135670	l1 mm	l2 mm	l4 mm	d2 mm	a mm	l3 mm	Corex mm
M3×0,35		56	4	18	2�2	—	—	2�65	M12×1,5		100	21	—	9�0	7�0	10	10�50
M4×0,5		63	7	21	2�8	2�1	5	3�50	M14×1,5		100	21	—	11�0	9�0	12	12�50
M5×0,5		70	8	25	3�5	2�7	6	4�50	M16×1,5		100	21	—	12�0	9�0	12	14�50
M6×0,5		80	10	30	4�5	3�4	6	5�50	M18×1,5		110	24	—	14�0	11�0	14	16�50
M6×0,75		80	10	30	4�5	3�4	6	5�25	M20×1,5		125	24	—	16�0	12�0	15	18�50
M8×0,75		80	10	—	6�0	4�9	8	7�25	M22×1,5		125	24	—	18�0	14�5	17	20�50
M8×1		90	13	—	6�0	4�9	8	7�00	M24×1,5		140	26	—	18�0	14�5	17	22�50
M10×1		90	12	—	7�0	5�5	8	9�00	M27×1,5		140	26	—	20�0	16�0	19	25�50
M12×1		100	13	—	9�0	7�0	10	11�00	M30×1,5		150	26	—	22�0	18�0	21	28�50

Machine tap Inox

	P	M	S	N	MF	HSS-E	DIN		Chamfer form C	Metric fine	DIN
Cat. no.										60°
	N/mm2	N/mm2	N/mm2	N/mm2		V3	374				13
					Metric
135680	< 1100	< 800 Titanium < 900 Nickel < 900			fine thread			40° Twist	L
									2-3 threads
		vc = m/min.						M
135680	6-8	6-8	2-4	2-4	6H		2.5 × D

Design: Blind hole - for blind hole thread - chamfer form C, 2-3 thread - high-speed steel with vanadium content

- vaporised

Use: Especially for stainless steels.

135680 PRECITOOL, HSSE-V3, RSP40, vaporised

d1× P	135680	l1 mm	l2 mm	d2 mm	a mm	l3 mm	Corex mm	d1× P	135680	l1 mm	l2 mm	d2 mm	a mm	l3 mm	Corex mm
M3×0,35		56	4	2�2	—	—	2�65	M12×1,50		100	14	9�0	7�0	10	10�50
M4×0,50		63	6	2�8	2�1	5	3�50	M14×1,50		100	16	11�0	9�0	12	12�50
M5×0,50		70	7	3�5	2�7	6	4�50	M16×1,50		100	16	12�0	9�0	12	14�50
M6×0,50		80	8	4�5	3�4	6	5�50	M18×1,50		110	20	14�0	11�0	14	16�50
M6×0,75		80	8	4�5	3�4	6	5�30	M20×1,50		125	20	16�0	12�0	15	18�50
M8×0,75		80	10	6�0	4�9	8	7�30	M22×1,50		125	20	18�0	14�5	17	20�50
M8×1,00		90	10	6�0	4�9	8	7�00	M24×1,50		140	24	18�0	14�5	17	22�50
M10×1,00		90	12	7�0	5�5	8	9�00	M27×1,50		140	24	20�0	16�0	19	25�50
M12×1,00		100	14	9�0	7�0	10	11�00	M30×1,50		150	28	22�0	18�0	21	28�50
