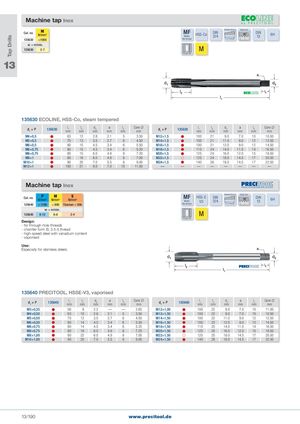

Tap Drills Machine tap Inox Cat. no. MN/mm2 MF Metric HSS-Co DIN374 Chamfer form B Metric fine60°L DIN13 6H 135630 <1000 fine thread 3,5-5 threads vc = m/min. 135630 3-7 M Through hole 13 135630 ECOLINE, HSS-Co, steam tempered d1 × P 135630 l1 l2mmmm d2mm amm l3 Core mmmm d1 × P 135630 l1 l2mmmm d2mm amm l3 Core mmmm M4×0,5  63 12 2.8 2.1 5  3.50 M12×1,5  100 21  9.0  7.0 10 10.50 M5×0,5  70 13 3.5 2.7 6  4.50 M14×1,5  100 21 11.0  9.0 12 12.50 M6×0,5  80 15 4.5 3.4 6  5.50 M16×1,5  100 21 12.0  9.0 12 14.50 M6×0,75  80 15 4.5 3.4 6  5.20 M18×1,5  110 24 14.0 11.0 14 16.50 M8×0,75  80 15 6.0 4.9 8  7.20 M20×1,5  125 24 16.0 12.0 15 18.50 M8×1  80 18 6.0 4.9 8  7.00 M22×1,5  125 24 18.0 14.5 17 20.50 M10×1  90 20 7.0 5.5 8  9.00 M24×1,5  140 26 18.0 14.5 17 22.50 M12×1  100 21 9.0 7.0 10 11.00 — — — — — — — — Machine tap Inox Cat. no. PN/mm2 MN/mm2 SN/mm2 MF HSS-E Chamfer form B Metric fineDIN60°DINMetricV3374L136H 135640 < 1100 < 800 Titanium < 900 fine thread 3,5-5 threads vc = m/min. 135640 8-12 6-8 2-4 M Through hole Design: - for through-hole threads - chamfer form B, 3.5-5 thread - high-speed steel with vanadium content - vaporised Use: Especially for stainless steels. 135640 PRECITOOL, HSSE-V3, vaporised d1 × P 135640 l1 l2mmmm d2mm amm l3 Core mmmm d1 × P 135640 l1mm l2mm d2mm amm l3 Core mmmm M3×0,35  56 8 2.2 — — 2.65 M12×1,00  100 22  9.0  7.0 10 11.00 M4×0,50  63 10 2.8 2.1 5 3.50 M12×1,50  100 22  9.0  7.0 10 10.50 M5×0,50  70 12 3.5 2.7 6 4.50 M14×1,50  100 22 11.0  9.0 12 12.50 M6×0,50  80 14 4.5 3.4 6 5.50 M16×1,50  100 22 12.0  9.0 12 14.50 M6×0,75  80 14 4.5 3.4 6 5.25 M18×1,50  110 25 14.0 11.0 14 16.50 M8×0,75  80 18 6.0 4.9 8 7.25 M20×1,50  125 25 16.0 12.0 15 18.50 M8×1,00  90 22 6.0 4.9 8 7.00 M22×1,50  125 25 18.0 14.5 17 20.50 M10×1,00  90 20 7.0 5.5 8 9.00 M24×1,50  140 28 18.0 14.5 17 22.50 13/190 www.precitool.de
