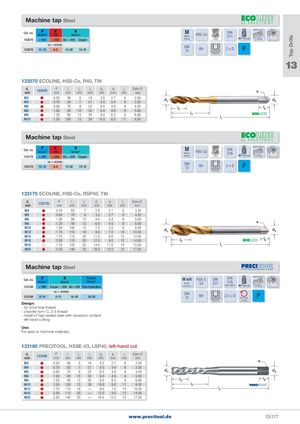

Tap Drills Machine tap Steel Cat. no. PN/mm2 KHB NN/mm2 M Metric HSS-Co DIN371 Chamfer form C Metric60°L 133070 < 850 < 200 Alu < 600 Copper thread coated 40°Twist 2-3 threads vc = m/min.13307012-156-815-3010-15 DIN13 6H 2×D P Blind hole 13 133070 ECOLINE, HSS-Co, R40, TiN d1mm 133070 Pmm l1 l2 l4mmmmmm d2mm a l3 Core mmmmmm M3  0.50 56 6 18  3.5 2.7 6 2.50 M4  0.70 63 7 21  4.5 3.4 6 3.30 M5  0.80 70 8 25  6.0 4.9 8 4.20 M6  1.00 80 10 30  6.0 4.9 8 5.00 M8  1.25 90 12 35  8.0 6.2 9 6.80 M10  1.50 100 15 39 10.0 8.0 11 8.50 Machine tap Steel Cat. no. PN/mm2 KHB NN/mm2 M Metric HSS-Co DIN376 Chamfer form C Metric60°L 133170 < 850 < 200 Alu < 600 Copper thread coated 40°Twist 2-3 threads vc = m/min.13317012-156-815-3010-15 DIN13 6H 2×D P Blind hole 133170 ECOLINE, HSS-Co, RSP40, TiN d1mm 133170 Pmm l1 l2mmmm d2mm amm l3 Core mmmm M4  0.70 63 7  2.8  2.1 5  3.30 M5  0.80 70 8  3.5  2.7 6  4.20 M6  1.00 80 10  4.5  3.4 6  5.00 M8  1.25 90 13  6.0  4.9 8  6.00 M10  1.50 100 15  7.0  5.5 8  8.50 M12  1.75 110 18  9.0  7.0 10 10.20 M14  1.75 110 20 11.0  9.0 12 12.00 M16  2.00 110 20 12.0  9.0 12 14.00 M18  1.75 125 25 14.0 11.0 14 15.50 M20  2.50 140 25 16.0 12.0 15 17.50 Machine tap Steel Cat. no. PN/mm2 NN/mm2 PlasticsN/mm2133180< 900Copper < 900Alu <500Thermoplastics M left HSS-E DIN DIN Chamfer form C Metric60°MetricV3left thread371376from M1240°TwistL2-3 threads vc = m/min.1331806-108-1218-2618-26 DIN13 6H 2.5 × D left hand P Blind hole cutting Design: - for blind hole thread - chamfer form C, 2-3 thread - made of high-speed steel with vanadium content - left-hand cutting Use: For easy to machine materials. 133180 PRECITOOL, HSSE-V3, LSP40, left-hand cut d1mm 133180 Pmm l1 l2 l4mmmmmm d2mm amm l3 Core mmmm M3  0.50 56 5 18  3.5  2.7 6  2.50 M4  0.70 63 7 21  4.5  3.4 6  3.30 M5  0.80 70 8 25  6.0  4.9 8  4.20 M6  1.00 80 10 30  6.0  4.9 8  5.00 M8  1.25 90 13 35  8.0  6.2 9  6.80 M10  1.50 100 15 39 10.0  8.0 11  8.50 M12  1.75 110 18 —  9.0  7.0 10 10.20 M16  2.00 110 20 — 12.0  9.0 12 14.00 M20  2.50 140 25 — 16.0 12.0 15 17.50 www.precitool.de 13/177
