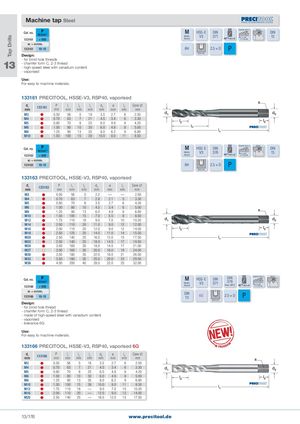

Tap Drills Machine tap Steel Cat. no. PN/mm2 M HSS-E DIN Chamfer form C Metric 60° DINMetricV3371L13 133161 < 900 thread 40°Twist 2-3 threads vc = m/min. 133161 10-15 6H 2.5 × D P Blind hole Design: - for blind hole threads 13 - chamfer form C, 2-3 thread- high-speed steel with vanadium content - vaporised Use: For easy to machine materials. 133161 PRECITOOL, HSSE-V3, RSP40, vaporised d1mm 133161 Pmm l1 l2 l4mmmmmm d2mm a l3 Core mmmmmm M3  0.50 56 5 18  3.5 2.7 6 2.50 M4  0.70 63 7 21  4.5 3.4 6 3.30 M5  0.80 70 8 25  6.0 4.9 8 4.20 M6  1.00 80 10 30  6.0 4.9 8 5.00 M8  1.25 90 13 35  8.0 6.2 9 6.80 M10  1.50 100 15 39 10.0 8.0 11 8.50 Cat. no. PN/mm2 M HSS-E DIN Chamfer form C Metric 60° DINMetricV3376L13 133163 < 900 thread 40°Twist 2-3 threads vc = m/min. 133163 10-15 6H 2.5 × D P Blind hole 133163 PRECITOOL, HSSE-V3, RSP40, vaporised d1mm 133163 Pmm l1 l2mmmm d2mm amm l3 Core mmmm M3  0.50 56 5  2.2 — —  2.50 M4  0.70 63 7  2.8  2.1 5  3.30 M5  0.80 70 8  3.5  2.7 6  4.20 M6  1.00 80 10  4.5  3.4 6  5.00 M8  1.25 90 13  6.0  4.9 8  6.80 M10  1.50 100 15  7.0  5.5 8  8.50 M12  1.75 110 18  9.0  7.0 10 10.20 M14  2.00 110 20 11.0  9.0 12 12.00 M16  2.00 110 20 12.0  9.0 12 14.00 M18  2.50 125 25 14.0 11.0 14 15.50 M20  2.50 140 25 16.0 12.0 15 17.50 M22  2.50 140 25 18.0 14.5 17 19.50 M24  3.00 160 30 18.0 14.5 17 21.00 M27  3.00 160 30 20.0 16.0 19 24.00 M30  3.50 180 35 22.0 18.0 21 26.50 M33  3.50 180 35 25.0 20.0 23 29.50 M36  4.00 200 40 28.0 22.0 25 32.00 Cat. no. PN/mm2133166< 900 M HSS-E DIN DIN Chamfer form C Metric60°MetricthreadV3371376from M1240°TwistL2-3 threads vc = m/min.13316610-15 DIN13 6G 2.5 × D P Blind hole Design: - for blind hole thread - chamfer form C, 2-3 thread - made of high-speed steel with vanadium content - vaporised - tolerance 6G Use: For easy to machine materials. 133166 PRECITOOL, HSSE-V3, RSP40, vaporised 6G d1mm 133166 Pmm l1 l2 l4mmmmmmd2mm amm l3 Core mmmm M3  0.50 56 5 18  3.5  2.7 6  2.50 M4  0.70 63 7 21  4.5  3.4 6  3.30 M5  0.80 70 8 25  6.0  4.9 8  4.20 M6  1.00 80 10 30  6.0  4.9 8  5.00 M8  1.25 90 13 35  8.0  6.2 9  6.80 M10  1.50 100 15 39 10.0  8.0 11  8.50 M12  1.75 110 18 —  9.0  7.0 10 10.20 M16  2.00 110 20 — 12.0  9.0 12 14.00 M20  2.50 140 25 — 16.0 12.0 15 17.50 13/176 www.precitool.de
