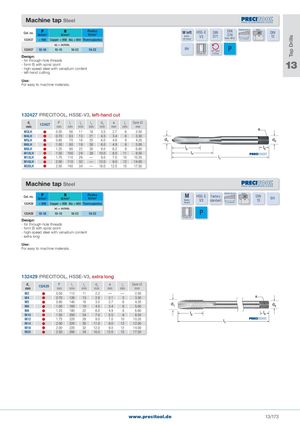

Tap Drills Machine tap Steel Cat. no. PN/mm2 NN/mm2 PlasticsN/mm2132427< 900Copper < 900Alu < 600Thermoplastics M left HSS-E DIN DIN Chamfer form B Metric60° DINMetricV3left thread371376Lfrom M123,5-5 threads13 vc = m/min. 132427 10-18 10-15 18-22 18-22 6H left hand P Through hole cutting Design: - for through-hole threads- form B with spiral point- high-speed steel with vanadium content 13 - left-hand cutting Use: For easy to machine materials. 132427 PRECITOOL, HSSE-V3, left-hand cut d1mm 132427 Pmm l l l124mmmmmmd 2mm amm l 3 Core mmmm M3LH  0.50 56 11 18  3.5  2.7 6  2.50 M4LH  0.70 63 13 21  4.5  3.4 6  3.30 M5LH  0.80 70 16 25  6.0  4.9 8  4.20 M6LH  1.00 80 19 30  6.0  4.9 8  5.00 M8LH  1.25 90 22 35  8.0  6.2 9  6.80 M10LH  1.50 100 24 39 10.0  8.0 11  8.50 M12LH  1.75 110 28 —  9.0  7.0 10 10.20 M16LH  2.00 110 32 — 12.0  9.0 12 14.00 M20LH  2.50 140 34 — 16.0 12.0 15 17.50 Machine tap Steel Cat. no. PN/mm2 NN/mm2 PlasticsN/mm2 M Chamfer form B MetricHSS-EFactory 60° DINMetricV3standardL136H 132429 < 900 Copper < 900 Alu < 600 Thermoplastics thread 3,5-5 threads vc = m/min. 132429 10-18 10-15 18-22 18-22 P Through hole Design: - for through-hole threads - form B with spiral point - high-speed steel with vanadium content - extra long Use: For easy to machine materials. 132429 PRECITOOL, HSSE-V3, extra long d1mm 132429 Pmm l1 l2mmmm d2mm amm l3 Core mmmm M3  0.50 112 11  2.2 — —  2.50 M4  0.70 126 13  2.8  2.1 5  3.30 M5  0.80 140 16  3.5  2.7 6  4.20 M6  1.00 160 19  4.5  3.4 6  5.00 M8  1.25 180 22  6.0  4.9 8  6.80 M10  1.50 200 24  7.0  5.5 8  8.50 M12  1.75 220 28  9.0  7.0 10 10.20 M14  2.00 220 30 11.0  9.0 12 12.00 M16  2.00 220 32 12.0  9.0 12 14.00 M20  2.50 280 34 16.0 12.0 15 17.50 www.precitool.de 13/173
