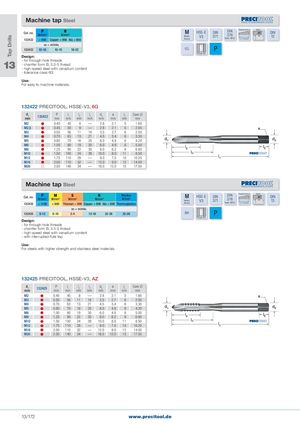

Общий каталог PRECITOOL - страница 177

Tap Drills Machine tap Steel Cat. no. PN/mm2 NN/mm2132422< 900Copper < 900Alu < 600 M HSS-E DIN DIN Chamfer form B Metric60° DINMetricthreadV3371376Lfrom M123,5-5 threads13 vc = m/min. 132422 10-18 10-15 18-32 6G P Through hole Design: 13 - for through-hole threads- chamfer form B, 3.5-5 thread- high-speed steel with vanadium content - tolerance class 6G Use: For easy to machine materials. 132422 PRECITOOL, HSSE-V3, 6G d1mm 132422 Pmm l1 l2 l4 d2mmmmmmmma l3 Core mmmmmm M2  0.40 45 8 —  2.8  2.1 5  1.60 M2,5  0.45 50 9 —  2.8  2.1 5  2.05 M3  0.50 56 11 18  3.5  2.7 6  2.50 M4  0.70 63 13 21  4.5  3.4 6  3.30 M5  0.80 70 16 25  6.0  4.9 8  4.20 M6  1.00 80 19 30  6.0  4.9 8  5.00 M8  1.25 90 22 35  8.0  6.2 9  6.80 M10  1.50 100 24 39 10.0  8.0 11  8.50 M12  1.75 110 28 —  9.0  7.0 10 10.20 M16  2.00 110 32 — 12.0  9.0 12 14.00 M20  2.50 140 34 — 16.0 12.0 15 17.50 Machine tap Steel Cat. no. PN/mm2 MN/mm2 SN/mm2 NN/mm2 PlasticsN/mm2132425< 1100< 800Titanium < 900Copper < 900Alu < 600ThermoplasticsMHSS-E DIN DIN Chamfer form B Metric60° DINMetricthreadV3371376Lfrom M123,5-5 threads13 vc = m/min. 132425 8-12 6-10 2-4 12-18 22-26 22-26 6H P Through hole Design: - for through-hole threads - chamfer form B, 3.5-5 thread - high-speed steel with vanadium content - with interrupted-flute tap Use: For steels with higher strength and stainless steel materials. 132425 PRECITOOL, HSSE-V3, AZ d1mm 132425 Pmm l1 l2 l4mmmmmmd2mm amm l3 Core mmmm M2  0.40 45 8 —  2.8  2.1 5  1.60 M3  0.50 56 11 18  3.5  2.7 6  2.50 M4  0.70 63 13 21  4.5  3.4 6  3.30 M5  0.80 70 16 25  6.0  4.9 8  4.20 M6  1.00 80 19 30  6.0  4.9 8  5.00 M8  1.25 90 22 35  8.0  6.2 9  6.80 M10  1.50 100 24 39 10.0  8.0 11  8.50 M12  1.75 110 28 —  9.0  7.0 10 10.20 M16  2.00 110 32 — 12.0  9.0 12 14.00 M20  2.50 140 34 — 16.0 12.0 15 17.50 13/172 www.precitool.de
