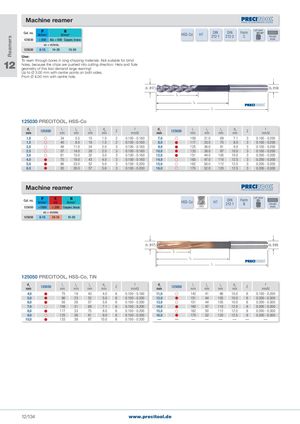

Общий каталог PRECITOOL - страница 139
Навигация
Reamers Machine reamer Cat. no. PN/mm2 NN/mm2 HSS-Co H7 DIN DIN Form Left twist45°212-1212-2CStraight 125030 < 850 Alu < 600 Copper, brass shank vc = m/min. 125030 8-15 14-20 15-30 Use: 12 To ream through bores in long-chipping materials. Not suitable for blindholes, because the chips are pushed into cutting direction. Helix and flutegeometry of this tool demand large reaming! Up to Ø 3.00 mm with centre points on both sides. From Ø 4.00 mm with centre hole. d1 (H7) d2 (h9) l2 l4 l1 125030 PRECITOOL, HSS-Co d1mm 125030 l1mm l2mm l4mm d2mm Z fmm/U d1mm 125030 l1mm l2mm l4mm d2mm Z fmm/U 1,0 34 5.5 15 1.0 2 0.100 - 0.160 7,0 109 31.0 69 7.1 3 0.100 - 0.200 1,5 40 8.0 18 1.5 2 0.100 - 0.160 8,0 117 33.0 75 8.0 3 0.100 - 0.200 2,0 49 11.0 24 2.0 3 0.100 - 0.160 9,0 125 36.0 81 9.0 3 0.100 - 0.200 2,5 57 14.0 28 2.5 3 0.100 - 0.160 10,0 133 38.0 87 10.0 3 0.100 - 0.200 3,0 61 15.0 32 3.0 3 0.100 - 0.160 12,0 151 44.0 105 10.0 3 0.200 - 0.300 4,0 75 19.0 43 4.0 3 0.100 - 0.160 14,0 160 47.0 110 12.5 3 0.200 - 0.300 5,0 86 23.0 52 5.0 3 0.100 - 0.200 15,0 162 50.0 112 12.5 3 0.200 - 0.300 6,0 93 26.0 57 5.6 3 0.100 - 0.200 16,0 170 52.0 120 12.5 3 0.200 - 0.300 Machine reamer Cat. no. PN/mm2 KHB NN/mm2 HSS-Co H7 DIN Form Left twist212-1BStraight 125050 <1000 < 200 Copper, brass coated shank vc = m/min. 125050 8-15 10-14 15-30 d1 (H7) d2 (h9) l2 l4 l1 125050 PRECITOOL, HSS-Co, TiN d1mm 125050 l 1mm l l2 4mmmm d 2mm Z fmm/U d1mm 125050 l l l12 4mmmmmm d 2mm Z fmm/U 4,0 75 19 43 4.0 6 0.100 - 0.160 11,0 142 41 96 10.0 6 0.100 - 0.200 5,0 86 23 52 5.0 6 0.100 - 0.200 12,0 151 44 105 10.0 6 0.200 - 0.300 6,0 93 26 57 5.6 6 0.100 - 0.200 13,0 151 44 105 10.0 6 0.200 - 0.300 7,0 109 31 69 7.1 6 0.100 - 0.200 14,0 160 47 110 12.5 8 0.200 - 0.300 8,0 117 33 75 8.0 6 0.100 - 0.200 15,0 162 50 112 12.5 8 0.200 - 0.300 9,0 125 36 81 9.0 6 0.100 - 0.200 16,0 170 52 120 12.5 8 0.200 - 0.300 10,0 133 38 87 10.0 6 0.100 - 0.200 — — — — — — — — 12/134 www.precitool.de
