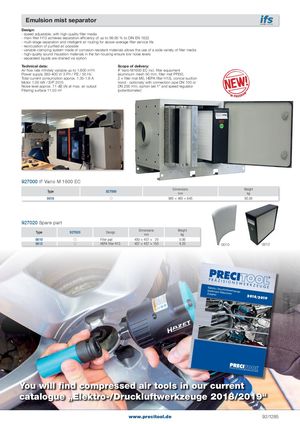

Emulsion mist separator Design: - speed adjustable, with high-quality filter media - main filter H13 achieves separation efficiency of up to 99.95 % to DIN EN 1822 - multi-stage separation and intelligent air routing for above-average filter service life - recirculation of purified air possible - variable clamping system made of corrosion-resistant materials allows the use of a wide variety of filter media - high-quality sound insulation materials in the fan housing ensure low noise levels - separated liquids are drained via siphon Technical data: Scope of delivery: Air flow rate infinitely variable up to 1,600 m³/h IF Vario M1600 EC incl. filter equipment Power supply 380-400 V/ 3 Ph / PE / 50 Hz (aluminium mesh 50 mm, filter mat PPI30, Total current consumption approx. 1.35-1.6 A 2 × filter mat M5, HEPA filter H13), conical suction Motor 1.00 kW / ErP 2015 hood - optionally with connection pipe DN 150 or Noise level approx. 71 dB (A) at max. air output DN 200 mm, siphon set 1" and speed regulator Filtering surface 11.50 m² (potentiometer) 927000 IF Vario M 1600 EC Type 927000 Dimensionsmm Weightkg 0010 � 985 × 465 × 645 85.00 927020 Spare part Type 927020 Design Dimensionsmm Weightkg 0010 � Filter pad 450 × 457 ×   20 0.06 0012 � HEPA filter H13 457 × 457 × 150 4.20 0010 0012 AZrSEbutleaebitkeisothrsnöocär-hr/ueDtrMzucakslcuhftinweenrkzeuge 22001188//22001199 92 You will find compressed air tools in our current catalogue „Elektro-/Druckluftwerkzeuge 2018/2019“ www.precitool.de 92/1285 2018/2019Arbeitsschutz Coolants / Lubricants / Compressed Air
