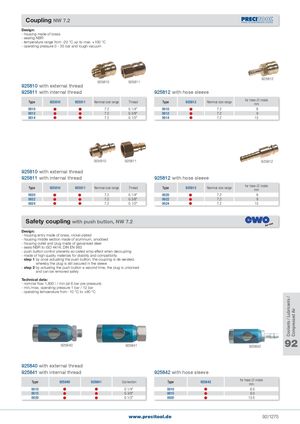

Общий каталог PRECITOOL - страница 1280

Coupling NW 7.2 Design: - housing made of brass - sealing NBR - temperature range from -20 °C up to max. +100 °C - operating pressure 0 - 35 bar and rough vacuum 925812 925810 925811 925810 with external thread 925811 with internal thread 925812 with hose sleeve Type 925810 925811 Nominal size range Thread Type 925812 Nominal size range for hose x insidemm 0010   7.2 G 1/4" 0010  7.2 6 0012   7.2 G 3/8" 0012  7.2 9 0014   7.2 G 1/2" 0014  7.2 13 925810 925811 925812 925810 with external thread 925811 with internal thread 925812 with hose sleeve Type 925810 925811 Nominal size range Thread Type 925812 Nominal size range for hose x insidemm 0020   7.2 G 1/4" 0020  7.2 6 0022   7.2 G 3/8" 0022  7.2 9 0024   7.2 G 1/2" 0024  7.2 13 Safety coupling with push button, NW 7.2 Design: - housing entry made of brass, nickel-plated - housing middle section made of aluminium, anodised - housing outlet and plug made of galvanised steel - seals NBR to ISO 4414, DIN EN 983 - push button control prevents so-called whip effect when decoupling - made of high quality materials for stability and compatibility - step 1 by once actuating the push button, the coupling is de-aerated, whereby the plug is still secured in the sleeve - step 2 by actuating the push button a second time, the plug is unlocked and can be removed safely Technical data: - nominal flow 1,800 l / min (at 6 bar pre-pressure) - min./max. operating pressure 1 bar / 12 bar - operating temperature from -10 °C to +90 °C 925840 925841 925842 92 925840 with external thread 925841 with internal thread 925842 with hose sleeve Type 925840 925841 Connection Type 925842 for hose x insidemm 0010   G 1/4" 0010   6.0 0015   G 3/8" 0015   9.0 0020   G 1/2" 0020  13.0 www.precitool.de 92/1275 Coolants / Lubricants / Compressed Air
