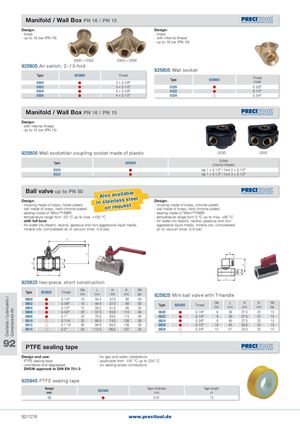

Общий каталог PRECITOOL - страница 1279

Manifold / Wall Box PN 16 / PN 15 Design: Design: - brass - brass - up to 16 bar (PN 16) - with internal thread - up to 16 bar (PN 16) 0300 + 0302 0304 + 0306 925805 Air switch, 2- / 3-fold 925805 Wall socket Type 925805 Thread03003 × G 3/8" Type 925805 Threadinside 0302  3 × G 1/2" 0320  G 3/8" 0304  4 × G 3/8" 0322  G 1/2" 0306  4 × G 1/2" 0324  G 3/4" Manifold / Wall Box PN 16 / PN 15 Design: - with internal thread - up to 15 bar (PN 15) 925805 Wall socket/air coupling socket made of plastic 0330 0332 Type 925805 Outlets(internal threads) 0330  top 1 × G 1/2" / front 2 × G 1/2" 0332  top 1 × G 1/2" / front 3 × G 1/2" Ball valve up to PN 50Design:- housing made of brass, nickel-plated- ball made of brass, hard chrome-platedinAslsotaoninarelveqasuislaesbsttleeelDesign:- housing made of brass, chrome-plated- ball made of brass, hard chrome-plated - sealing made of Teflon™/NBR - sealing made of Teflon™/NBR - temperature range from -20 °C up to max. +150 °C - temperature range from 0 °C up to max. +90 °C - with full bore - for water (no steam), neutral, gaseous and non- - for water (no steam), neutral, gaseous and non-aggressive liquid media, aggressive liquid media, mineral oils, compressed mineral oils, compressed air or vacuum (max -0.9 bar) air or vacuum (max -0.9 bar) R R L L 925825 two-piece, short construction Type 925825 Thread DNmm Lmm H R PNmmmmbar 925825 Mini ball valve with T-handle 0800  G 1/4" 10  44.4 37.0 80 50 0802  G 3/8" 10  44.4 37.0 80 500804G 1/2"15 50.541.08050Type 925825 Thread DN L H R PNmmmmmmmmbar 0806  G 3/4" 20  57.5 55.0 113 40 0820  G 1/8" 6 39 27.5 22 15 0808  G 1" 25  70.0 59.0 113 40 0822  G 1/4" 8 39 27.5 22 15 0810  G 11⁄4 32  80.5 74.5 138 30 0824  G 3/8" 8 40 27.5 22 15 0812  G 1 1⁄2 40  94.0 80.5 138 30 0826  G 1/2" 10 45 29.5 22 15 0814  G 2" 50 112.5 96.5 157 25 0828  G 3/4" 12 51 33.0 22 15 92 PTFE sealing tape Design and use: - for gas and water installations - PTFE sealing tape - applicable from -197 °C up to 255 °C - unsintered and degreased - for sealing screw connections - DVGW approval to DIN EN 751-3 925945 PTFE sealing tape Rangemm 925945 Tape thickness Tape lengthmmm 12  0.01 12 92/1274 www.precitool.de Coolants / Lubricants / Compressed Air G DN H DN G H
