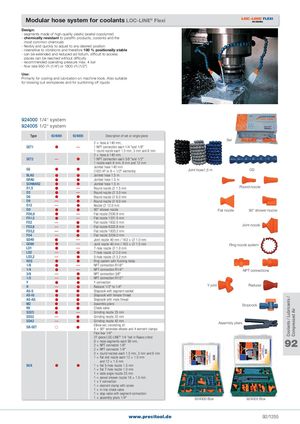

Modular hose system for coolants LOC-LINE® Flexi Design: - segments made of high-quality plastic (acetal copolymer) - chemically resistant to paraffin products, coolants and the most common chemicals - flexibly and quickly to adjust to any desired position - insensitive to vibrations and therefore 100 % positionally stable - can be extended and reduced ad libitum, difficult to access places can be reached without difficulty - recommended operating pressure max. 4 bar - flow rate 950 l/h (1/4") or 1800 l/h (1/2") Use: Primarily for cooling and lubrication on machine tools. Also suitable for blowing out workpieces and for suctioning off liquids 924000 1/4“ system 924005 1/2“ system Type 924000 924005 Description of set or single piece Set 2 × hose à 140 mm, SET1  — 1 NPT connection each 1/4 "and 1/8" 1 round nozzle each 1.5 mm, 3 mm and 6 mm 2 × hose à 140 mm, SET2 —  1 NPT connection each 3/8 "and 1/2" 1 nozzle each 6 mm, 9 mm and 12 mm GS   Jointed hose 140 mm(1031/4" or 6 × 1/2" elements) Joint hose1,5 m GS BLAU   Jointed hose 1.5 m GRAU   Jointed hose 1.5 m SCHWARZ   Jointed hose 1.5 m D1,5  — Round nozzle x 1.5 mm Round nozzle D3  — Round nozzle x 3.0 mm D6   Round nozzle x 6.0 mm D9 —  Round nozzle x 9.0 mm D12 —  Nozzle x 12.0 mm DD   90° shower nozzle Flat nozzle 90° shower nozzle FD0,8  — Flat nozzle 2530.8 mm FD1,5  — Flat nozzle 1231.5 mm FD2 —  Flat nozzle 1832.0 mm FD2,8 —  Flat nozzle 6332.8 mm Joint nozzle FD3,2 —  Flat nozzle 1833.2 mm FD4 —  Flat nozzle 3234.0 mm GD40  — Joint nozzle 40 mm / 163 ×  1.0 mm GD60  — Joint nozzle 40 mm / 163 ×  1.5 mm Ring nozzle system LD1  — 7-hole nozzle x 1.0 mm LD2 —  7-hole nozzle x 2.0 mm LD3,2 —  5-hole nozzle x 3.2 mm RDS   Ring system with flushing holes 1/8  — NPT connection R1/8'' 1/4  — NPT connection R1/4'' NPT connections 3/8 —  NPT connection 3⁄8" 1/2 —  NPT connection R1/2'' Y   Y connection R —  Reducer 1/2" to 1/4" Y joint Reducer AS-S   Stopcock with segment socket AS-IG   Stopcock with female thread AS-AG   Stopcock with male thread MZ   Assembly pliers Stopcock RV   Check valve SD25  — Grinding nozzle 25 mm SD32 —  Grinding nozzle 32 mm SD42 —  Grinding nozzle 42 mmSB-SETElbow set, consisting of:4 × 90° extended elbows and 4 element clampsAssembly pliers Flexi box 1/4" 27-piece LOC-LINE® 1/4 "set in Raaco chest 8 × hose segments each 90 mm,2 × NPT connector 1/8" 92 2 × NPT connector 1/4" 2 × round nozzles each 1.5 mm, 3 mm and 6 mm 1 × flat slot nozzle each 12 × 1.0 mm and 12 × 1.5 mm BOX   1 × flat 5-hole nozzle 1.5 mm 1 × flat 7-hole nozzle 1.0 mm 1 × wide angle nozzle 25 mm 1 × swivel shower nozzle 16 × 1.0 mm 1 × Y connection 1 × element clamp with screw 1 × in-line check valve 1 × stop valve with segment connection 1 × assembly pliers 1/4" 924000 Box 924005 Box www.precitool.de 92/1255 Coolants / Lubricants / Compressed Air
