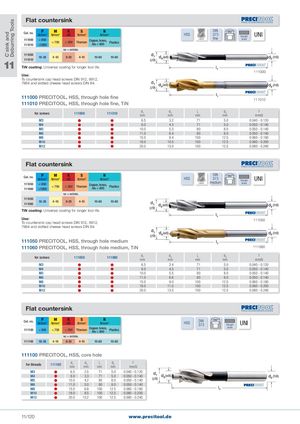

C`sink and Deburring Tools Flat countersink Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2111000< 850111010<1000< 750< 250TitaniumCopper, brass,Alu < 600PlasticsHSS coated DIN373fine 180° Straight UNIshank vc = m/min. 111000 18-28 4-10 8-20 4-10 10-80 10-80 (e8) (h9) 111010 (z9) 11 TiN coating: Universal coating for longer tool life. 111000 Use: To countersink cap head screws DIN 912, 6912, 7984 and slotted cheese head screws DIN 84. (e8) (h9) (z9) 111000 PRECITOOL, HSS, through hole fine 111010 111010 PRECITOOL, HSS, through hole fine, TiN for screws 111000 111010 d1mm d3mm l1mm d2mm fmm/U M3   6.5 3.2 71 5.0 0.040 - 0.120 M4   8.0 4.3 71 5.0 0.050 - 0.140 M5   10.0 5.3 80 8.0 0.050 - 0.140 M6   11.0 6.4 80 8.0 0.050 - 0.140 M8   15.0 8.4 100 12.5 0.060 - 0.180 M10   18.0 10.5 100 12.5 0.080 - 0.200 M12   20.0 13.0 100 12.5 0.090 - 0.240 Flat countersink Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2111050< 850111060<1000< 750< 250TitaniumCopper, brass,Alu < 600PlasticsHSS DIN 180°373coatedmediumStraightUNIshank vc = m/min. 111050 18-28 4-10 8-20 4-10 10-80 10-80 111060 (e8) (h9) (z9) TiN coating: Universal coating for longer tool life. Use: 111050 To countersink cap head screws DIN 912, 6912, 7984 and slotted cheese head screws DIN 84. (e8) (h9) (z9) 111050 PRECITOOL, HSS, through hole medium 111060 PRECITOOL, HSS, through hole medium, TiN 111060 for screws 111050 111060 d 1mm d3mm l1mm d2mm fmm/U M3   6.5 3.4 71 5.0 0.040 - 0.120 M4   8.0 4.5 71 5.0 0.050 - 0.140 M5   10.0 5.5 80 8.0 0.050 - 0.140 M6   11.0 6.6 80 8.0 0.050 - 0.140 M8   15.0 9.0 100 12.5 0.060 - 0.180 M10   18.0 11.0 100 12.5 0.080 - 0.200 M12   20.0 13.5 100 12.5 0.090 - 0.240 Flat countersink Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2 HSS DIN373 180° Straight UNI 111100 < 850 < 750 < 250 Titanium Copper, brass,Alu < 600Plastics shank vc = m/min. 111100 18-28 4-10 8-20 4-10 10-80 10-80 111100 PRECITOOL, HSS, core hole for threads 111100 d 1mm d l3 1mmmm d 2mm fmm/U M3  6.5 2.5 71 5.0 0.040 - 0.120 M4M5  8.0 3.3 71 5.0 0.050 - 0.140 (e8)10.04.2808.00.050 - 0.140(z9) (h9) M6  11.0 5.0 80 8.0 0.050 - 0.140 M8  15.0 6.8 100 12.5 0.060 - 0.180 M10  18.0 8.5 100 12.5 0.080 - 0.200 M12  20.0 10.2 100 12.5 0.090 - 0.240 11/120 www.precitool.de
