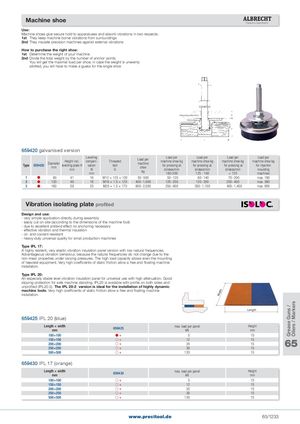

Общий каталог PRECITOOL - страница 1238

Machine shoe Use: Machine shoes give secure hold to apparatuses and absorb vibrations in two respects: 1st They keep machine borne vibrations from surroundings 2nd They insulate precision machines against external vibrations How to purchase the right shoe: 1st Determine the weight of your machine 2nd Divide the total weight by the number of anchor points. You will get the maximal load per shoe; in case the weight is unevenly allotted, you will have to make a guess for the single shoe Dismounting safety feature 659420 galvanised version LevellingType659420DiametermmHeight incl.levelling plate Hmmcompen-sationNThreadedboltGmmLoad permachineshoekgLoad perLoad per Load per Load permachine shoe kgmachine shoe kgmachine shoe kgmachine shoe kgfor pressing atfor pressing atfor pressing atfor injectionstrokes/minstrokes/minstrokes/minmoulding160-200125 - 160< 125machines 1   80 41 16 M12 × 125 × 120 50 - 500   50 - 120   60 - 140   70 - 200 max. 180 2  120 49 16 M16 × 1.5 × 120 400 - 1,000 120 - 250 120 - 350 200 - 400 max. 360 3  160 59 23 M20 × 1.5 × 170 800 - 2,500 250 - 900 350 - 1,100   400 - 1,400 max. 900 Vibration isolating plate profiled Design and use: - very simple application directly during assembly - easily cut on-site (according to the dimensions of the machine foot) - due to excellent antiskid effect no anchoring necessary - effective vibration and thermal insulation - oil- and coolant-resistant - heavy-duty universal quality for small production machines Type IPL 17: A highly resilient, very elastic vibration insulation panel version with low natural frequencies. Advantageous vibration behaviour, because the natural frequencies do not change due to the non-linear properties under varying pressures. The high load capacity allows even the mounting of heaviest equipment. Very high coefficients of static friction allow a free and floating machine installation. Type IPL 20: An especially stable level vibration insulation panel for universal use with high attenuation. Good slipping protection for safe machine standing. IPL20 is available with profile on both sides and unprofiled (IPL20-2). The IPL 20-2 version is ideal for the installation of highly dynamic machine tools. Very high coefficients of static friction allow a free and floating machine installation. Length 659425 IPL 20 (blue) Length × widthmm 659425 max. load per panel HeightkNmm 100×100 +   5 15 150×150 +200×200+  12 20 1515 65 250×250 +  30 15 500×500 + 120 15 659430 IPL 17 (orange) Length × widthmm 659430 max. load per panel HeightkNmm 100×100 +   5 15 150×150 +  12 15 200×200 +  20 15 250×250 +  30 15 500×500 + 120 15 www.precitool.de 65/1233 Width Grease Guns / Oilers / Markers
