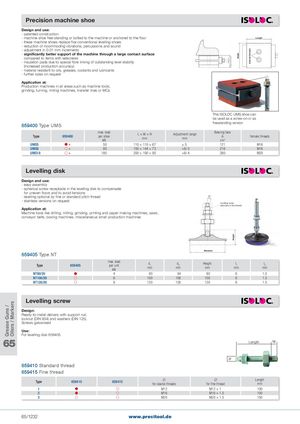

Grease Guns / Oilers / Markers Height Adjustment range Height Width Internal threads Precision machine shoe Design and use: - patented construction - machine shoe free-standing or bolted to the machine or anchored to the floor Length - these machine shoes replace five conventional levelling shoes - reduction of incommoding vibrations, percussions and sound - adjustment in 0.01 mm increments - significantly better support of the machine through a large contact surface compared to items with setscrews - insulation pads due to special fibre linking of outstanding level stability (increased production accuracy) - material resistant to oils, greases, coolants and lubricants - further sizes on request Application at: Production machines in all areas such as machine tools, grinding, turning, milling machines, transfer lines or MCs This ISOLOC UMS shoe can be used as a screw-on or as 659400 Type UMS freestanding version max. loadType659400per shoekN L×W×Hmm Adjustment rangemm Bearing faceAcm² female threads UMS5 +  50 110 × 110 × 67 ±5 121 M16 UMS8 +  80 150 × 144 × 73 +6/-3 216 M16 UMS18 + 180 200 × 190 × 90 +6/-4 380 M20 Levelling disk Design and use: - easy assembly - spherical screw receptacle in the levelling disk to compensate for uneven floors and to avoid tensions - levelling optional by fine or standard pitch thread - stainless versions on request Levelling screw (standard or fine thread) Application at: Machine tools like drilling, milling, grinding, printing and paper making machines, saws, conveyor belts, boxing machines, miscellaneous small production machines Diameter 659405 Type NT Type 659405 max. loadper unitkN d 1 d2 Height t1 t2mmmmmmmmmm NT80/20  4  80  84  80 6 1.5 NT100/20  6 100 106 100 6 1.5 NT120/20  9 120 126 120 6 1.5 Levelling screw Design: Ready-to-install delivery with support nut, locknut (DIN 934) and washers (DIN 125). Screws galvanised Use: For levelling disk 659405 65 Length 659410 Standard thread 659415 Fine thread Type 659410 659415 xfor coarse threads xfor fine thread Lengthmm 1   M12 M12 × 1 100 2   M16 M16 × 1.5 100 3   M20 M20 × 1.5 150 65/1232 www.precitool.de
