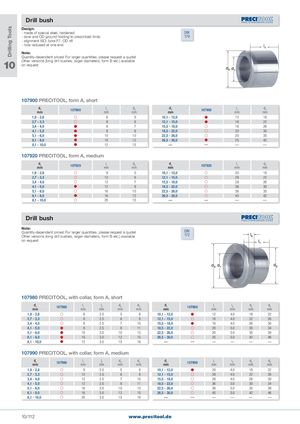

Drill bush
- made of special steel, hardened DIN - bore and OD ground holding to prescribed limits 179 - alignment ISO: bore F7, OD n6 - hole radiused at one end
Note: Quantity-dependent prices! For larger quantities, please request a quote! 10 Other versions (long drill bushes, larger diameters, form B etc.) available on request
107900 PRECITOOL, form A, short
| d | l | d | d | l | d | ||||
| 1 | 107900 | 1 | 2 | 1 | 107900 | 1 | 2 | ||
| mm | mm | mm | mm | mm | mm | ||||
| 1,9 - 2,6 | | 6 | 5 | 10,1 - 12,0 | | 12 | 18 | ||
| 2,7 - 3,3 | | 8 | 6 | 12,1 - 15,0 | | 16 | 22 | ||
| 3,4 - 4,0 | | 8 | 7 | 15,5 - 18,0 | | 16 | 26 | ||
| 4,1 - 5,0 | | 8 | 8 | 18,5 - 22,0 | | 20 | 30 | ||
| 5,1 - 6,0 | | 10 | 10 | 22,5 - 26,0 | | 20 | 35 | ||
| 6,1 - 8,0 | | 10 | 12 | 26,5 - 30,0 | | 25 | 42 | ||
| 8,1 - 10,0 | | 12 | 15 | — | — | — | — |
107920 PRECITOOL, form A, medium
| d | l | d | d | l | d | ||||
| 1 | 107920 | 1 | 2 | 1 | 107920 | 1 | 2 | ||
| mm | mm | mm | mm | mm | mm | ||||
| 1,9 - 2,6 | | 9 | 5 | 10,1 - 12,0 | | 20 | 18 | ||
| 2,7 - 3,3 | | 12 | 6 | 12,1 - 15,0 | | 28 | 22 | ||
| 3,4 - 4,0 | | 12 | 7 | 15,5 - 18,0 | | 28 | 26 | ||
| 4,1 - 5,0 | | 12 | 8 | 18,5 - 22,0 | | 36 | 30 | ||
| 5,1 - 6,0 | | 16 | 10 | 22,5 - 26,0 | | 36 | 35 | ||
| 6,1 - 8,0 | | 16 | 12 | 26,5 - 30,0 | | 45 | 42 | ||
| 8,1 - 10,0 | | 20 | 15 | — | — | — | — |
Drill bush
Note: Quantity-dependent prices! For larger quantities, please request a quote! DIN Other versions (long drill bushes, larger diameters, form B etc.) available 172 on request
107980 PRECITOOL, with collar, form A, short
| d | l | l | d | d | d | l | l | d | d | ||||
| 1 | 107980 | 1 | 2 | 2 | 3 | 1 | 107980 | 1 | 2 | 2 | 3 | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 1,9 - 2,6 | | 6 | 2�0 | 5 | 8 | 10,1 - 12,0 | | 12 | 4�0 | 18 | 22 | ||
| 2,7 - 3,3 | | 8 | 2�5 | 6 | 9 | 12,1 - 15,0 | | 16 | 4�0 | 22 | 26 | ||
| 3,4 - 4,0 | | 8 | 2�5 | 7 | 10 | 15,5 - 18,0 | | 16 | 4�0 | 26 | 30 | ||
| 4,1 - 5,0 | | 8 | 2�5 | 8 | 11 | 18,5 - 22,0 | | 20 | 5�0 | 30 | 34 | ||
| 5,1 - 6,0 | | 10 | 3�0 | 10 | 13 | 22,5 - 26,0 | | 20 | 5�0 | 35 | 39 | ||
| 6,1 - 8,0 | | 10 | 3�0 | 12 | 15 | 26,5 - 30,0 | | 25 | 5�0 | 42 | 46 | ||
| 8,1 - 10,0 | | 12 | 3�0 | 15 | 18 | — | — | — | — | — | — |
107990 PRECITOOL, with collar, form A, medium
| d | l | l | d | d | d | l | l | d | d | ||||
| 1 | 107990 | 1 | 2 | 2 | 3 | 1 | 107990 | 1 | 2 | 2 | 3 | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 1,9 - 2,6 | | 9 | 2�0 | 5 | 8 | 10,1 - 12,0 | | 20 | 4�0 | 18 | 22 | ||
| 2,7 - 3,3 | | 12 | 2�5 | 6 | 9 | 12,1 - 15,0 | | 28 | 4�0 | 22 | 26 | ||
| 3,4 - 4,0 | | 12 | 2�5 | 7 | 10 | 15,5 - 18,0 | | 28 | 4�0 | 26 | 30 | ||
| 4,1 - 5,0 | | 12 | 2�5 | 8 | 11 | 18,5 - 22,0 | | 36 | 5�0 | 30 | 34 | ||
| 5,1 - 6,0 | | 16 | 3�0 | 10 | 13 | 22,5 - 26,0 | | 36 | 5�0 | 35 | 39 | ||
| 6,1 - 8,0 | | 16 | 3�0 | 12 | 15 | 26,5 - 30,0 | | 45 | 5�0 | 42 | 46 | ||
| 8,1 - 10,0 | | 20 | 3�0 | 15 | 18 | — | — | — | — | — | — |
