Общий каталог PRECITOOL - страница 1163

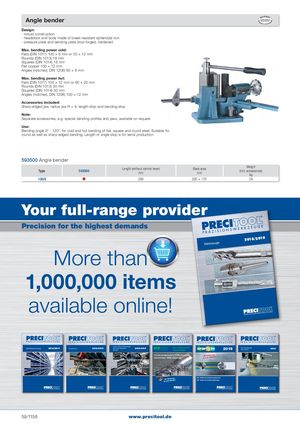

Angle bender Design: - robust construction - headstock and body made of break-resistant spheroidal iron - pressure plate and bending plate drop-forged, hardened Max. bending power cold: Flats (DIN 1017) 100 × 6 mm or 50 × 12 mm Rounds (DIN 1013) 18 mm Squares (DIN 1014) 18 mm Flat copper 100 × 12 mm Angles (notched, DIN 1208) 60 × 8 mm Max. bending power hot: Flats (DIN 1017) 100 × 12 mm or 60 × 20 mm Rounds (DIN 1013) 30 mm Squares (DIN 1014) 30 mm Angles (notched, DIN 1208) 100 × 12 mm Accessories included: Sharp-edged jaw, radius jaw R = 4, length stop and bending stop Note: Separate accessories, e.g. special bending profiles and jaws, available on request Use: Bending angle 0° - 120°, for cold and hot bending of flat, square and round steel. Suitable for round as well as sharp-edged bending. Length or angle stop is for serial production 593500 Angle bender Type 593500 Length (without control lever)mm Base areamm Weight(incl. accessories)kg 100/E  260 205 × 175 24 Your full-range provider Precision for the highest demands 2018/2019 Werkzeuge More than 1,000,000 items available online! Elektro-/Druckluftwerkzeuge 2018/2019 Elektro-/Druckluftwerkzeuge 2018/2019Betriebseinrichtung2018/2019ArSbteaittisosncähruetMz aschinen22001188//22001199ArSbteaittisosncähruetMz aschinen2018/2019Die preiswerteZubehörZubehörAlternative.2019 Mikrobearbeitungund Zubehör 2019 Hochleistungsbohrer VHM UniversalSchaftfräser VHM Universal aAb lLleagWeerrlkiezfeeurgbear ! aAblLleagWeerrlkiezfeeurgbear! GP VHM-HochleistungsbohrerGP VHM-Hochleistungsfräser gültig vom 01.01.2019 bis 30.09.2019 59/1158 www.precitool.de 2018/2019Arbeitsschutz 2018/2019Arbeitsschutz 2019Mikrobearbeitung und Zubehör
