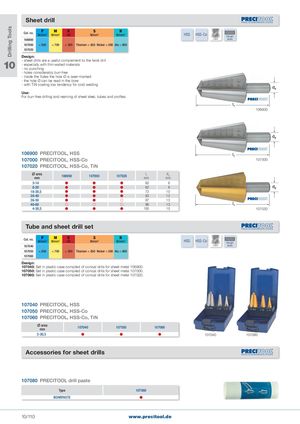

Общий каталог PRECITOOL - страница 115
Навигация
Sheet drill
| Cat. no. N/m 106900 | P m2 M N/mm2 | K HB S N/mm2 N N/mm2 | HSS | HSS-Co | coated | Straight shank |
| < 8 107000 | 50 < 700 | < 300 Titanium < 850 Nickel < 500 Alu < 600 | ||||
| 107020 |
Design: 10 - sheet drills are a useful complement to the twist drill - especially with thin-walled materials - no punching - holes considerably burr-free - inside the flutes the hole Ø is laser-marked - the hole Ø can be read in the bore - with TiN coating low tendency for cold welding
Use: For burr-free drilling and reaming of sheet steel, tubes and profiles.
106900
106900 PRECITOOL, HSS
107000 PRECITOOL, HSS-Co 107000
107020 PRECITOOL, HSS-Co, TiN
| Xarea mm | 106900 | 107000 | 107020 | l1 mm | d2 mm | |
| 3-14 | | | | 60 | 6 | |
| 8-20 | | | | 62 | 8 | |
| 16-30,5 | | | | 72 | 10 | |
| 26-40 | | | | 83 | 12 | |
| 36-50 | | | | 87 | 13 | |
| 46-60 | | | | 96 | 13 | |
| 4-30,5 | | | | 100 | 10 | 107020 |
| Tub | e and sheet drill set | ||||
| Cat. no. 107040 | P N/mm2 M N/mm2 K HB S N/mm2 N N/mm2 | HSS | HSS-Co | coated | Straight shank |
| 107050 | < 850 < 700 < 300 Titanium < 850 Nickel < 500 Alu < 600 | ||||
| 107060 |
Design:
107040: Set in plastic case compiled of conical drills for sheet metal 106900.
107050: Set in plastic case compiled of conical drills for sheet metal 107000.
107060: Set in plastic case compiled of conical drills for sheet metal 107020.
107040 PRECITOOL, HSS
107050 PRECITOOL, HSS-Co
107060 PRECITOOL, HSS-Co, TiN
X area
| 107040 | 107050 | 107060 | |||
| mm | |||||
| 3-30,5 | | | | 107040 | 107060 |
Accessories for sheet drills
107080 PRECITOOL drill paste
| Type | 107080 |
| BOHRPASTE | |
