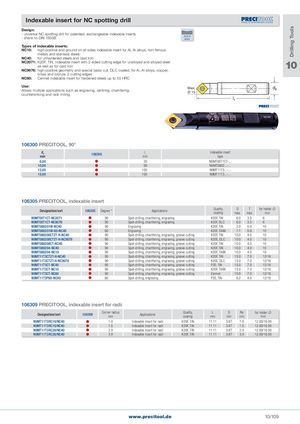

Indexable insert for NC spotting drill
- universal NC spotting drill for patented, exchangeable indexable inserts - shank to DIN 1835B
Types of indexable inserts:
NC10: high-positive and ground on all sides indexable insert for Al, Al alloys, non-ferrous metals and stainless steels
NC40: for unhardened steels and cast iron
NC2071: K20F, TiN, indexable insert with 2-sided cutting edge for unalloyed and alloyed steel as well as for cast iron
NC9076: high-positive geometry and special basic cut, DLC coated, for Al, Al alloys, copper, brass and bronze. 2 cutting edges
NC60: Cermet indexable insert for hardened steels up to 55 HRC
Use: Allows multiple applications such as engraving, centring, chamfering, countersinking and radii milling.
1835 B shank
10
Max. Ø 15
106300 PRECITOOL, 90°
| d2 mm | 106300 | l1 mm | Indexable insert type |
| 6,00 | | 35 | N9MT05T1CT-��� |
| 10,00 | | 90 | N9MT0802���-��� |
| 12,00 | | 100 | N9MT11T3���-��� |
| 16,00 | | 100 | N9MT11T3���-��� |
106305 PRECITOOL, indexable insert
| Designation/sort | 106305 | Degree ° | Applications | Quality, coating | D max� | T max� | for holderx mm | |
| N9MT05T1CT-NC2071 | | 90 | Spot-drilling, | chamfering, engraving | K20F, TiN | 6�0 | 3�5 | 6 |
| N9MT05T1CT-NC9076 | | 90 | Spot-drilling, | chamfering, engraving | K20F, DLC | 6�0 | 3�5 | 6 |
| N9MT080201W-NC40 | | 90 | Engraving | K20F, TiN | 2�0 | 0�9 | 10 | |
| N9MT080201W-60-NC40 | | 60 | Engraving | K20F, TiAlN | 1�1 | 0�8 | 10 | |
| N9MT080208CT2T-H-NC40 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20F, TiN | 10�0 | 4�0 | 10 |
| N9MT080208CT2T-H-NC9076 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20E, DLC | 10�0 | 4�0 | 10 |
| N9MT080208CT-NC40 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20F, TiN | 10�0 | 4�0 | 10 |
| N9MT080204-NC40 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20F, TiN | 10�0 | 4�0 | 10 |
| N9MT080204-NC10 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20F, TiAlN | 10�0 | 4�0 | 10 |
| N9MT11T3CT2T-H-NC40 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20F, TiN | 15�0 | 7�0 | 12/16 |
| N9MT11T3CT2T-H-NC9076 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20E, DLC | 15�0 | 7�0 | 12/16 |
| N9MT11T3CT-NC40 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | P35, TiN | 15�0 | 7�0 | 12/16 |
| N9MT11T3CT-NC10 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | K20F, TiAlN | 15�0 | 7�0 | 12/16 |
| N9MT11T3CT-NC60 | | 90 | Spot-drilling, | chamfering, engraving, groove cutting | Cermet | 15�0 | 7�0 | 12/16 |
| N9MT11T3P60-NC40 | | 60 | Spot-drilling, | engraving | P35, TiN | 6�2 | 4�0 | 12/16 |
106309 PRECITOOL, indexable insert for radii
| Designation/sort | 106309 | Corner radius mm | Applications | Quality, coating | L mm | S mm | Re mm | for holderx mm |
| N9MT11T3RC10/NC40 | | 1�0 | Indexable insert for radii | K20F, TiN | 11�11 | 3�97 | 1�0 | 12�00/16�00 |
| N9MT11T3RC15/NC40 | | 1�5 | Indexable insert for radii | K20F, TiN | 11�11 | 3�97 | 1�5 | 12�00/16�00 |
| N9MT11T3RC20/NC40 | | 2�0 | Indexable insert for radii | K20F, TiN | 11�11 | 3�97 | 2�0 | 12�00/16�00 |
| N9MT11T3RC30/NC40 | | 3�0 | Indexable insert for radii | K20F, TiN | 11�11 | 3�97 | 3�0 | 12�00/16�00 |
