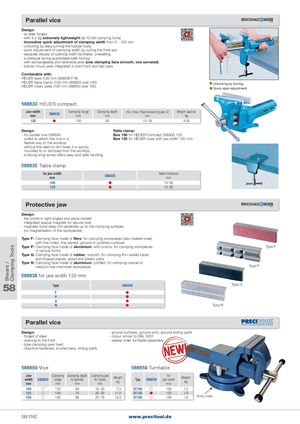

Parallel vice Design: - all steel forged - with 4.5 kg extremely lightweight (at 10 kN clamping force) - innovative quick adjustment of clamping width from 0 - 130 mm 1 - unlocking by easy turning the tubular body 2 - quick adjustment of clamping width by pulling the front jaw - separate display of opening width facilitates presetting - a pressure spring guarantees safe locking - with exchangeable and reversible jaws (one clamping face smooth, one serrated) - tubular chuck jaws integrated in both front and rear jaws Combinable with: HEUER jaws (120 mm 588838 F-N) HEUER table clamp (100 mm 588835 size 100) 1 Unlocking by turning HEUER rotary plate (100 mm 588650 size 100) 2 Quick span adjustment 588830 HEUER compact 1 2 Jaw widthmm 588830 Clamping rangemm Clamping depthmm min./max. Pipe tensioning jaw xmm Weight approx.kg 120  130 65 15 - 50  4.50 Design: Table clamp: - for parallel vice 588830 Size 100 for HEUER-Compact 588830 120 - suited to attach the vice in a Size 120 for HEUER vices with jaw width 120 mm flexible way to the worktop 1 Entriegeln durch Drehen - without the need to drill holes it is quickly 2 Schnelleinstellung der Spannweite mounted to or removed from the worktop - a strong wing screw offers easy and safe handling 588835 Table clamp for jaw widthmm 588835 Table thicknessmm 100  10 - 60  120  10 - 60  Protective jaw Design: - the profile is right-angled and plane parallel - integrated special magnets for secure hold - magnetic force does not penetrate up to the clamping surfaces (no magnetisation of the workpieces) Type F: Clamping face made of fibre, for clamping workpieces (also heated ones) with fine milled, fine planed, ground or polished surfaces Type P: Clamping face made of aluminium, with prisms, for clamping workpieces Type F in various forms Type G: Clamping face made of rubber, smooth, for clamping thin-walled tubes and shaped pieces, wood and plastic parts Type N: Clamping face made of aluminium, profiled, for clamping coarse to medium-fine machined workpieces Type P 588838 for jaw width 120 mm 58 Type 588838 Type G F  P  G  N  Type N Parallel vice Design: - ground surfaces, ground anvil, ground sliding parts - forged of steel - colour similar to RAL 5001 - opening to the front - please order turntable separately - tube clamping jaws fixed - inductive hardened, knurled jaws, sliding parts 588859 Vice 588859 Turntable Jawwidthmm Clamping Clamping depth Clamping jaw588859rangeto spindlefor tubesmmmmmmWeightkgTyp588859forjaw widthmmWeightkg 100  120 64 16 - 30   7,5 DT100  100 1,3 125  140 74 20 - 50  11,0 DT125  125 1,4 150  180 88 25 - 70  19,5 DT150  150 1,6 Rotary table 58/1142 www.precitool.de Shears / Clamping Tools
