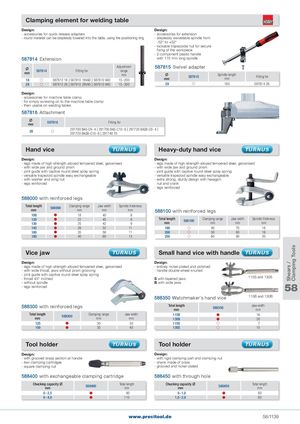

Clamping element for welding table Design: Design: - accessories for quick-release adapters - accessories for extension - round material can be steplessly lowered into the table, using the positioning ring - steplessly swivellable spindle from -52° to +52° - lockable trapezoidal nut for secure fixing of the workpiece - 2-component plastic handle 587814 Extension with 175 mm long spindle Xmm 587814 Fitting for Adjustmentrangemm16587812 16 | 587810 16VAD | 587810 VAD15 - 200 587815 Swivel adapterXmm587815Spindle lengthmmFitting for 28  587812 28 | 587810 28VAD | 587810 VAD 15 - 300  28  160 587814 28 Design: - accessories for machine table clamp - for simply screwing on to the machine table clamp - then usable on welding tables 587816 Attachment Xmm 587816 Fitting for 28  291700 BAS-C9 - 4 | 291700 BAS-C10 - 6 | 291720 BASB-C9 - 4 |291720 BASB-C10 - 6 | 291740 70 Hand vice Heavy-duty hand vice Design: Design: - legs made of high-strength alloyed tempered steel, galvanised - legs made of high-strength alloyed tempered steel, galvanised - with wide jaw and ground prism - with wide jaw and ground prism - joint guide with captive round steel splay spring - joint guide with captive round steel splay spring - versatile trapezoid spindle easy exchangeable - versatile trapezoid spindle easy exchangeable - with washer and wing nut - extra strong, sturdy design with hexagon - legs reinforced nut and crank - legs reinforced 588000 with reinforced legs Total lengthmm 588000 Clamping rangemm Jaw widthmm Spindle thicknessmm 588100 with reinforced legs 100  18 40 8 120  22 45 813025429 Total lengthmm 588100 Clamping rangemm Jaw widthmm Spindle thicknessmm 145  28 52 11 180  40 70 18 160  35 58 11 200  50 80 18 180  40 60 13 250  60 90 20 Vice jaw Small hand vice with handle Design: Design: - legs made of high-strength alloyed tempered steel, galvanised - entirely nickel-plated and polished - with wide throat, jaws without prism grooving - handle double-wheel knurled - joint guide with captive round steel splay spring - throat 45° inclined S with tapered jaws 115S and 130S - without spindle B with wide jaws - legs reinforced 58 588350 Watchmaker´s hand vice 115B and 130B 588300 with reinforced legs Total lengthmm 588350 Jaw widthmm Total lengthmm 588300 Clamping rangemm Jaw widthmm 115B130B  1620 125  30 30 115S  7 150  35 40 130S  10 Tool holder Tool holder Design: Design: - with grooved brass section at handle - with rigid clamping part and clamping nut - two clamping cartridges - shank made of brass - square clamping nut - grooved and nickel-plated 588400 with exchangeable clamping cartridge 588450 with through hole Chucking capacity Xmm 588400 Total lengthmm Chucking capacity Xmm 588450 Total lengthmm 0 - 2,5  90 0 - 1,0  80 0 - 4,0  110 1,0 - 2,0  80 www.precitool.de 58/1139 Shears / Clamping Tools
