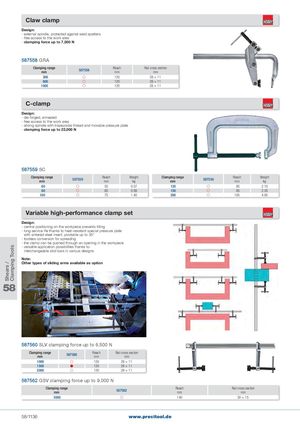

Claw clamp Design: - external spindle, protected against weld spatters - free access to the work area - clamping force up to 7,500 N 587558 GRA Clamping rangemm 587558 Reachmm Rail cross sectionmm 300  120 28 × 11 600  120 28 × 11 1000  120 28 × 11 C-clamp Design: - die-forged, annealed - free access to the work area - strong spindle with trapezoidal thread and movable pressure plate - clamping force up to 22,000 N 587559 SC Clamping rangemm 587559 Reachmm Weightkg Clamping rangemm 587559 Reachmm Weightkg 60  55 0.57 120  85 2.10 80  65 0.99 150  95 2.35 100  75 1.40 200  105 4.00 Variable high-performance clamp set Design: - central positioning on the workpiece prevents tilting - long service life thanks to heat-resistant special pressure plate with sintered steel insert, pivotable up to 35° - toolless conversion for spreading - the clamp can be pushed through an opening in the workpiece - versatile application possibilities thanks to interchangeable skid bars in various designs Note: Other types of sliding arms available as option 58 587560 SLV clamping force up to 6,500 N Clamping rangemm 587560 Reachmm Rail cross sectionmm 1000  120 28 × 11 1500  120 28 × 11 2000  120 28 × 11 587562 GSV clamping force up to 9,000 N Clamping rangemm 587562 Reachmm Rail cross sectionmm 3000  140 30 × 15 58/1136 www.precitool.de Shears / Clamping Tools
