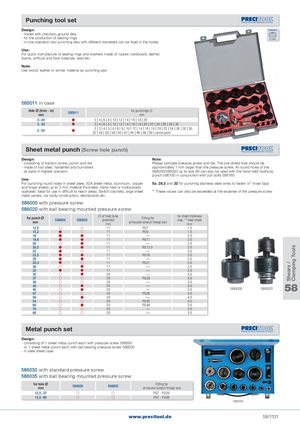

Общий каталог PRECITOOL - страница 1136

Punching tool set Design: Delivered - holder with precision ground dies - for the production of sealing rings in case - in one operation two punching dies with different diameters can be fixed in the holder Use: For quick manufacture of sealing rings and washers made of rubber, cardboard, leather, foams, artificial and fibre materials, lead etc. Note: Use wood, leather or similar material as punching pad 585011 in case Hole X (from - to)mm 585011 for punchings xmm 3 - 20   3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 3 - 30   3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 2 - 50   2 | 3 | 4 | 5 | 6 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 3032 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | centre point Sheet metal punch (Screw hole punch) Design: Note: - consisting of traction screw, punch and die Please lubricate pressure screw and die. The pre-drilled hole should be - made of tool steel, hardened and burnished approximately 1 mm larger than the pressure screw. All round holes of the - all parts in highest precision 586000/586020 up to size 60 can also be used with the hand-held hydraulic punch 586100 in conjunction with pull bolts 586180 Use: For punching round holes in sheet steel, V2A sheet metal, aluminium, copper Sz. 28.3 and 32 for punching stainless steel sinks to fasten ½" mixer taps and brass sheets up to 3 mm material thickness. Hand-held or hydraulically operated. Ideal for use in difficult to reach areas: Switch cabinets, large sheet ** These values can also be exceeded at the expense of the pressure screw metal panels, car body construction, dashboards etc. 586000 with pressure screw 586020 with ball bearing mounted pressure screw for punch Xmm 586000 586020 x of hole to bepredrilledmm Fitting forarmoured conduit thread sizefor sheet thicknessmax. ** steel sheetmm 12,5   11 PG7 1.5 15,2   11 PG9 1.5 16   11 — 2.0 18,6   11 PG11 2.0 20   11 — 2.0 20,5   11 PG13.5 2.0 22   11 — 2.0 22,5   11 PG16 2.0 25   11 — 2.0 28,3   11 PG21 2.0 30   11 — 2.0 32   11 — 2.0 35   20 — 3.0 37   20 PG29 3.0 38   20 — 3.0 40   20 — 3.04520—3.0 586000 586020 58 47   20 PG36 4.0 50   20 — 4.0 54   20 PG42 3.0 60   20 PG48 3.0 70   20 — 3.0 80   20 — 3.0 Metal punch set Design: - consisting of 1 sheet metal punch each with pressure screw 586000 or 1 sheet metal punch each with ball bearing pressure screw 586020 - in steel sheet case 586030 with standard pressure screw 586035 with ball bearing mounted pressure screw for hole Xmm 586030 586035 Fitting forarmoured conduit thread size 12,5 - 37   PG7 - PG29 12,5 - 60   PG7 - PG48 586030 www.precitool.de 58/1131 Shears / Clamping Tools
