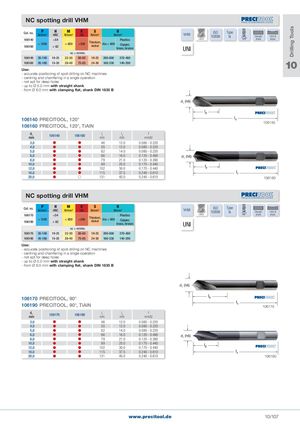

Общий каталог PRECITOOL - страница 112
Навигация
NC spotting drill VHM
| N/mm2 | HRC | N/mm2 | HB | N/mm2 | N/mm2 | 10898 | N | ||
| Straight | 1835 B |
| 106140 | <54 | Plastics | coated | 120° | shank | shank | |
| Titanium, |
< 1200 < 850 <300 Copper,
| 106160 | < 62 | nickel Alu < 600 | UNI | ||
| brass, bronze | |||||
| vc = m/min. |
| 106140 | 35-140 | 19-25 | 22-30 | 60-80 | 19-25 | 200-800 | 370-480 | 10 |
| 106160 | 45-180 | 15-20 | 28-40 | 75-85 | 24-30 | 160-330 | 140-200 |
Use: - accurate positioning of spot-drilling on NC machines - centring and chamfering in a single operation - not apt for deep holes
- up to Ø 5.0 mm with straight shank - from Ø 6.0 mm with clamping flat, shank DIN 1835 B d (h6) 1
106140 PRECITOOL, 120°
106160 PRECITOOL, 120°, TiAlN 106140
| d | l | l | f | ||
| 1 | 106140 | 106160 | 1 | 2 | |
| mm | mm | mm | mm/U | ||
| 3,0 | | | 46 | 12�0 | 0�080 - 0�220 |
| 4,0 | | | 55 | 12�0 | 0�080 - 0�220 |
| 5,0 | | | 62 | 14�0 | 0�080 - 0�220 |
| 6,0 | | | 66 | 16�0 | d (h6) 0�120 - 0�490 |
| 8,0 | | | 79 | 21�0 | 1 0�120 - 0�390 |
| 10,0 | | | 89 | 25�0 | 0�170 - 0�440 |
| 12,0 | | | 102 | 30�0 | 0�170 - 0�440 |
| 16,0 | | | 115 | 37�5 | 0�240 - 0�610 |
| 20,0 | | | 131 | 45�0 | 106160 0�240 - 0�610 |
| NC spotting drill VHM |
| P | H | M | K | S | N | ISO | Type | ||||
| Cat. no. | VHM | ||||||||||
| N/mm2 | HRC | N/mm2 | HB | N/mm2 | N/mm2 | 10898 | N | ||||
| Straight | 1835 B |
| 106170 | <54 | Plastics | coated | 90° | shank | shank | |
| Titanium, |
< 1200 < 850 <300 Copper,
| 106190 | < 62 | nickel Alu < 600 | UNI | ||
| brass, bronze | |||||
| vc = m/min. |
| 106170 | 35-140 | 19-25 | 22-30 | 60-80 | 19-25 | 200-800 | 370-480 |
| 106190 | 45-180 | 15-20 | 28-40 | 75-85 | 24-30 | 160-330 | 140-200 |
Use: - accurate positioning of spot-drilling on NC machines - centring and chamfering in a single operation - not apt for deep holes
- up to Ø 5.0 mm with straight shank - from Ø 6.0 mm with clamping flat, shank DIN 1835 B
d (h6) 1
106170 PRECITOOL, 90°
106190 PRECITOOL, 90°, TiAlN
106170
| d | l | l | f | ||
| 1 | 106170 | 106190 | 1 | 2 | |
| mm | mm | mm | mm/U | ||
| 3,0 | | | 46 | 12�0 | 0�080 - 0�220 |
| 4,0 | | | 55 | 12�0 | 0�080 - 0�220 |
| 5,0 | | | 62 | 14�0 | 0�080 - 0�220 |
| 6,0 | | | 66 | 16�0 | d (h6) 0�120 - 0�490 |
| 8,0 | | | 79 | 21�0 | 1 0�120 - 0�390 |
| 10,0 | | | 89 | 25�0 | 0�170 - 0�440 |
| 12,0 | | | 102 | 30�0 | 0�170 - 0�440 |
| 16,0 | | | 115 | 37�5 | 0�240 - 0�610 |
| 20,0 | | | 131 | 45�0 | 106190 0�240 - 0�610 |
