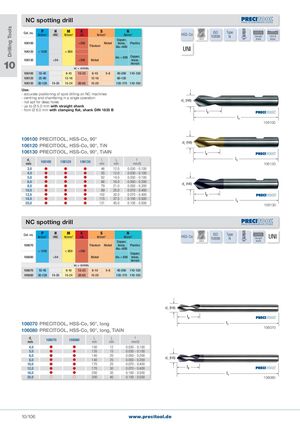

Общий каталог PRECITOOL - страница 111
Навигация
NC spotting drill
N/mm2 HRC N/mm2 HB N/mm2 N/mm2 10898 N
Straight 1835 B
Copper, coated 90° shank shank
106100 <300 Nickel brass, Plastics
Titanium Alu <600 UNI
106120 < 1200 < 850
Alu < 600 Copper,
10 106130 <54 <300 Nickel brass,
bronze vc = m/min.
| 106100 | 10-45 | 6-10 | 15-25 | 6-10 | 5-6 | 40-200 110-130 | |
| 106120 | 25-90 | 12-16 | 12-16 | 80-120 | |||
| 106130 | 30-120 | 15-20 | 15-24 | 50-65 | 15-20 | 120-170 110-150 |
Use: - accurate positioning of spot-drilling on NC machines - centring and chamfering in a single operation - not apt for deep holes d (h6) 1 - up to Ø 5.0 mm with straight shank - from Ø 6.0 mm with clamping flat, shank DIN 1835 B
106100
106100 PRECITOOL, HSS-Co, 90°
106120 PRECITOOL, HSS-Co, 90°, TiN d (h6) 1
106130 PRECITOOL, HSS-Co, 90°, TiAIN
| d | l | l | f | ||||
| 1 | 106100 | 106120 | 106130 | 1 | 2 | ||
| mm | mm | mm | 106120 mm/U | ||||
| 3,0 | | | | 46 | 12�0 | 0�030 - 0�100 | |
| 4,0 | | | | 55 | 12�0 | 0�030 - 0�100 | |
| 5,0 | | | | 62 | 14�0 | 0�030 - 0�100 | |
| 6,0 | | | | 66 | 16�0 | 0�050 - 0�200 |
d (h6)
| 8,0 | | | | 79 | 21�0 | 0�050 - 0�200 | 1 |
| 10,0 | | | | 89 | 25�0 | 0�070 - 0�400 | |
| 12,0 | | | | 102 | 30�0 | 0�070 - 0�400 | |
| 16,0 | | | | 115 | 37�5 | 0�100 - 0�500 | |
| 20,0 | | | | 131 | 45�0 | 0�100 - 0�500 |
106130
NC spotting drill
P H M K S N ISO Type UNI
Cat. no. HSS-Co
N/mm2 HRC N/mm2 HB N/mm2 N/mm2 10898 N
Straight
Copper, coated 90° shank
106070 Titanium Nickel brass, Plastics
Alu <600
< 1200 < 850 <300
Copper,
106080 <54 Nickel Alu < 600 brass,
bronze vc = m/min.
| 106070 | 10-45 | 6-10 | 15-25 | 6-10 | 5-6 | 40-200 110-130 | |
| 106080 | 30-120 | 15-20 | 15-24 | 50-65 | 15-20 | 120-170 110-150 |
d (h6) 1
106070 PRECITOOL, HSS-Co, 90°, long
106080 PRECITOOL, HSS-Co, 90°, long, TiAIN 106070
| d | l | l | f | |||
| 1 | 106070 | 106080 | 1 | 2 | ||
| mm | mm | mm | mm/U | |||
| 4,0 | | | 100 | 12 | 0�030 - 0�100 | |
| 5,0 | | | 120 | 15 | 0�030 - 0�100 | |
| 6,0 | | | 140 | 20 | 0�050 - 0�200 |
d (h6)
| 8,0 | | | 140 | 25 | 0�050 - 0�200 | 1 | |
| 10,0 | | | 170 | 25 | 0�070 - 0�400 | ||
| 12,0 | | | 170 | 30 | 0�070 - 0�400 | ||
| 16,0 | | | 200 | 35 | 0�100 - 0�500 | ||
| 20,0 | | | 200 | 40 | 0�100 - 0�500 | 106080 |
