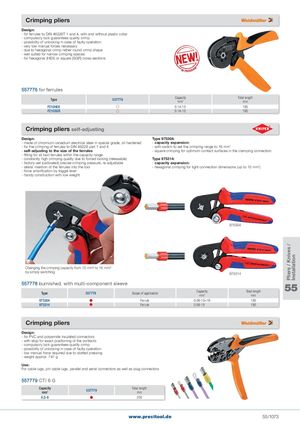

Общий каталог PRECITOOL - страница 1078

Crimping pliers Design: - for ferrules to DIN 46228T 1 and 4, with and without plastic collar - compulsory lock guarantees quality crimp - possibility of unlocking in case of faulty operation - very low manual forces necessary - due to hexagonal crimp rather round crimp shape - well suited for narrow crimping spaces - for hexagonal (HEX) or square (SGR) cross-sections 557776 for ferrules Type 557776 Capacitymm² Total lengthmm PZ10HEX  0.14-10 195 PZ10SQR  0.14-10 195 Crimping pliers self-adjusting Design: Type 975304: - made of chromium-vanadium electrical steel in special grade, oil-hardened - capacity expansion: - for the crimping of ferrules to DIN 46228 part 1 and 4 - with switch to set the crimping range to 16 mm² - self-adjusting to the size of the ferrules - square crimping for optimum contact surfaces in the clamping connection - fitting for all twin ferrules within the capacity range - constantly high crimping quality due to forced locking (releasable) Type 975314: - factory-set (calibrated) precise crimping pressure, re-adjustable - capacity expansion: - lateral insertion of the ferrules into the tool - hexagonal crimping for tight connection dimensions (up to 10 mm²) - force amplification by toggle lever - handy construction with low weight 975304 Changing the crimping capacity from 10 mm² to 16 mm² by simply switching 975314 557778 burnished, with multi-component sleeveType557778 Scope of application Capacitymm² Total length 55mm 975304  Ferrule 0,08-10+16  180 975314  Ferrule 0.08-10  180 Crimping pliers Design: - for PVC and polyamide insulated connectors - with stop for exact positioning of the contacts - compulsory lock guarantees quality crimp - possibility of unlocking in case of faulty operation - low manual force required due to slotted pressing - weight approx. 747 g Use: For cable lugs, pin cable lugs, parallel and serial connectors as well as plug connectors 557779 CTI 6 G Capacitymm² 557779 Total lengthmm 0,5-6  250 www.precitool.de 55/1073 Pliers / Knives / Installation
