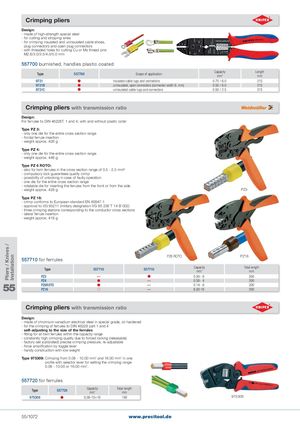

Crimping pliers Design: - made of high-strength special steel - for cutting and stripping wires - for crimping insulated and uninsulated cable shoes, plug connectors and open plug connectors - with threaded holes for cutting Cu or Ms thread pins M2.6/3.0/3.5/4.0/5.0 mm 557700 burnished, handles plastic coated Type 557700 Scope of application Capacity Lengthmm²mm 9721  insulated cable lugs and connectors 0.75 / 6.0 215 9721B  uninsulated, open connectors (connector width 6. mm) 0.50 / 6.0 215 9721C  uninsulated cable lugs and connectors 0.50 / 2.5 215 Crimping pliers with transmission ratio Design: For ferrules to DIN 46228T. 1 and 4, with and without plastic collar Type PZ 3: - only one die for the entire cross section range - frontal ferrule insertion - weight approx. 426 g Type PZ 4: - only one die for the entire cross section range - weight approx. 448 g Type PZ 6 ROTO: - also for twin ferrules in the cross section range of 0.5 - 2.5 mm² - compulsory lock guarantees quality crimp - possibility of unlocking in case of faulty operation - one die for the entire cross section range - rotatable die for inserting the ferrules from the front or from the side - weight approx. 428 g PZ3 Type PZ 16: - crimp conforms to European standard EN 60947-1 - approval to VG 95211 (military designation VG 95 236 T 14 B 002) - three crimping stations corresponding to the conductor cross sections - lateral ferrule insertion - weight approx. 418 g PZ6 ROTO PZ16 557710 for ferrules Type 557710 557710 Capacitymm² Total lengthmm PZ3 —  0.50- 6 200 PZ4  — 0.50- 4 200 55 PZ6ROTOPZ16  — 0.14- 6 200—6.00-16200 Crimping pliers with transmission ratio Design: - made of chromium-vanadium electrical steel in special grade, oil-hardened - for the crimping of ferrules to DIN 46228 part 1 and 4 - self-adjusting to the size of the ferrules - fitting for all twin ferrules within the capacity range - constantly high crimping quality due to forced locking (releasable) - factory-set (calibrated) precise crimping pressure, re-adjustable- force amplification by toggle lever 975308 - handy construction with low weight Type 975309: Crimping from 0.08 - 10.00 mm² and 16.00 mm² in one profile with selector lever for setting the crimping range 0.08 - 10.00 or 16.00 mm². 557720 for ferrules Type 557720 Capacitymm² Total lengthmm 975309  0,08-10+16  190 975309 55/1072 www.precitool.de Pliers / Knives / Installation
