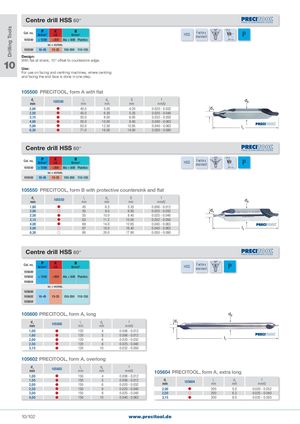

Centre drill HSS 60°
P K N 60° 15° P
Cat. no. HSS Factory A
| N/mm2 | HB | N/mm2 | standard | |||
| 105500 | < 1200 | <300 | Alu < 600 Plastics | S-0,1 |
vc = m/min.
105500 10-45 15-25 150-200 110-130
Design: 10 With flat at shank, 15° offset to countersink edge.
Use: For use on facing and centring machines, where centring and facing the end face is done in one step.
105500 PRECITOOL, form A with flat
| d | l | d | S | f | |||
| 1 | 105500 | 1 | 2 | ||||
| mm | mm | mm | mm | mm/U | |||
| 2,00 | | 40�0 | 5�00 | 4�20 | 0�020 - 0�032 | ||
| 2,50 | | 45�0 | 6�30 | 5�35 | 0�025 - 0�040 | ||
| 3,15 | | 50�0 | 8�00 | 6�95 | 0�032 - 0�050 | ||
| 4,00 | | 55�0 | 10�00 | 8�40 | 0�040 - 0�063 | ||
| 5,00 | | 63�0 | 12�50 | 10�95 | 0�040 - 0�063 | ||
| 6,30 | | 71�0 | 16�00 | 14�00 | 0�050 - 0�080 |
Centre drill HSS 60°
P K N 120° 15°
Cat. no. Factory 60° P
N/mm2 HB N/mm2 HSS B
standard
105550 < 1200 <300 Alu < 600 Plastics S-0,1
vc = m/min.
105550 10-45 15-25 150-200 110-130
105550 PRECITOOL, form B with protective countersink and flat
| d | l | d | S | f | ||
| 1 | 105550 | 1 | 2 | |||
| mm | mm | mm | mm | mm/U | ||
| 1,60 | | 45 | 6�3 | 5�35 | 0�006 - 0�012 | |
| 2,00 | | 50 | 8�0 | 6�95 | 0�020 - 0�032 | |
| 2,50 | | 55 | 10�0 | 8�40 | 0�025 - 0�040 | |
| 3,15 | | 63 | 11�2 | 10�00 | 0�032 - 0�050 | |
| 4,00 | | 69 | 14�0 | 12�65 | 0�040 - 0�063 | |
| 5,00 | | 87 | 18�0 | 16�40 | 0�040 - 0�063 | |
| 6,30 | | 80 | 20�0 | 17�90 | 0�050 - 0�080 |
Centre drill HSS 60°
P K N 60° P
Cat. no. HSS Factory A
N/mm2 HB N/mm2 standard
105600
105602 < 1200 <300 Alu < 600 Plastics
105604 vc = m/min. 105600
105602 10-45 15-25 150-200 110-130
105604
105600 PRECITOOL, form A, long
| d | l | d | f | ||
| 1 | 105600 | 1 | 2 | ||
| mm | mm | mm | mm/U | ||
| 1,00 | | 120 | 4 | 0�006 - 0�012 | |
| 1,60 | | 120 | 5 | 0�006 - 0�012 | |
| 2,00 | | 120 | 6 | 0�020 - 0�032 | |
| 2,50 | | 120 | 8 | 0�025 - 0�040 | |
| 3,15 | | 120 | 10 | 0�032 - 0�050 |
105602 PRECITOOL, form A, overlong
| d | l | d | f | ||||||||
| 1 | 105602 | 1 | 2 | ||||||||
| mm | mm | mm | mm/U | 105604 PRECITOOL, form A, extra long | |||||||
| 1,00 | | 150 | 4 | 0�006 - 0�012 | |||||||
| 1,50 | | 150 | 5 | 0�006 - 0�012 | d | l | d | f | |||
| 1 | 105604 | 1 | 2 | ||||||||
| 2,00 | | 150 | 6 | 0�020 - 0�032 | mm | mm | mm | mm/U | |||
| 2,50 | | 150 | 8 | 0�025 - 0�040 | 2,00 | | 200 | 5�0 | 0�020 - 0�032 | ||
| 3,00 | | 150 | 8 | 0�025 - 0�040 | 2,50 | | 200 | 6�3 | 0�025 - 0�040 | ||
| 4,00 | | 150 | 10 | 0�040 - 0�063 | 3,15 | | 200 | 8�0 | 0�032 - 0�050 |
