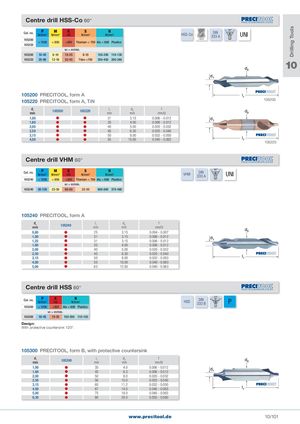

Общий каталог PRECITOOL - страница 106

Centre drill HSS-Co 60°

P M K S N DIN 60° UNI

Cat. no. HSS-Co A

	N/mm2	N/mm2	HB	N/mm2	333 A N/mm2
105200					coated
	< 1200	< 850	<300	Titanium < 700 Alu < 600 Plastics
105220
			vc = m/min.
105200	10-45	6-10	15-25	6-10	150-200 110-130
105220	25-90	12-16	35-45	Titan <700	10 350-450 200-260

105200 PRECITOOL, form A

105220 PRECITOOL, form A, TiN 105200

d			l	d	f
1	105200	105220	1	2
mm			mm	mm	mm/U
1,00			31	3�15	0�006 - 0�012
1,60			35	4�00	0�006 - 0�012
2,00			40	5�00	0�020 - 0�032
2,50			45	6�30	0�025 - 0�040
3,15			50	8�00	0�032 - 0�050
4,00			55	10�00	0�040 - 0�063
					105220
Centre drill VHM 60°

P M K S N 60°

Cat. no. DIN A UNI

	N/mm2	N/mm2	HB		N/mm2		N/mm2	VHM	333 A
105240	< 1200	< 850	<300	Titanium < 700 Alu < 600 Plastics
			vc = m/min.
105240	50-120	22-30	60-80		22-30	600-800 370-480

105240 PRECITOOL, form A

d1 mm	105240	l1 mm	d2 mm	f mm/U
0,80		25	3�15	0�004 - 0�007
1,00		31	3�15	0�006 - 0�012
1,25		31	3�15	0�006 - 0�012
1,60		35	4�00	0�006 - 0�012
2,00		40	5�00	0�020 - 0�032
2,50		45	6�30	0�025 - 0�040
3,15		50	8�00	0�032 - 0�050
4,00		55	10�00	0�040 - 0�063
5,00		63	12�50	0�040 - 0�063

Centre drill HSS 60°

P K N DIN 120°

Cat. no. HSS 60° P

	N/mm2		HB		N/mm2	333 B	B
105300	< 1200		<300	Alu < 600 Plastics
		vc = m/min.
105300	10-45		15-25	150-200 110-130

Design: With protective countersink 120°.

105300 PRECITOOL, form B, with protective countersink

d1 mm	105300	l1 mm	d2 mm	f mm/U
1,00		35	4�0	0�006 - 0�012
1,60		45	6�3	0�006 - 0�012
2,00		50	8�0	0�020 - 0�032
2,50		56	10�0	0�025 - 0�040
3,15		60	11�2	0�032 - 0�050
4,00		67	14�0	0�040 - 0�063
5,00		75	18�0	0�040 - 0�063
6,30		80	20�0	0�050 - 0�080
