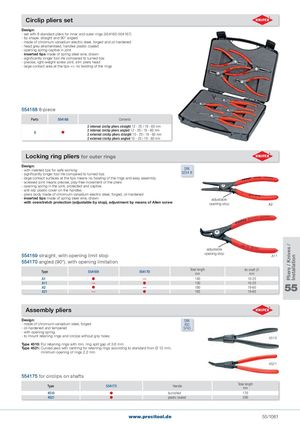

Общий каталог PRECITOOL - страница 1066

Circlip pliers set Design: - set with 8 standard pliers for inner and outer rings (554160-554167) - tip shape: straight and 90° angled - made of chromium-vanadium electric steel, forged and oil-hardened - head grey atramentised, handles plastic coated - opening spring captive in joint - inserted tips made of spring steel wire, drawn - significantly longer tool life compared to turned tips - precise, light-weight screw joint, slim pliers head - large contact area at the tips => no twisting of the rings 554168 8-piece Parts 554168 Contents 2 internal circlip pliers straight 12 - 25 | 19 - 60 mm 8  2 internal circlip pliers angled 12 - 25 | 19 - 60 mm2 external circlip pliers straight 10 - 25 | 19 - 60 mm 2 external circlip pliers angled 10 - 25 | 19 - 60 mm Locking ring pliers for outer rings Design:- with inserted tips for safe working- significantly longer tool life compared to turned tips DIN5254 B - large contact surfaces at the tips means no twisting of the rings and easy assembly - screwed joint means precise, play-free movement of the pliers - opening spring in the joint, protected and captive - anti-slip plastic cover on the handles - pliers body made of chromium-vanadium electric steel, forged, oil-hardened - inserted tips made of spring steel wire, drawn adjustable - with overstretch protection (adjustable by stop), adjustment by means of Allen screw opening stop A2 adjustable 554169 straight, with opening limit stop opening stop A11 554170 angled (90°), with opening limitation Type 554169 554170 Total length for shaft xmmmm A1  — 140 10-25 A11 — A2—A21— 130180165 10-2519-6019-60 55 Assembly pliers Design: DIN - made of chromium-vanadium steel, forged ISO - oil-hardened and tempered 5743 - with opening spring - to mount retaining rings and circlips without grip holes 4510 Type 4510: For retaining rings with min. ring split gap of 3.6 mm Type 4521: Curved jaws with centring for retaining rings according to standard from Ø 12 mm, minimum opening of rings 2.2 mm 4521 554175 for circlips on shafts Type 554175 Handle Total lengthmm 4510  burnished 170 4521  plastic coated 200 www.precitool.de 55/1061 Pliers / Knives / Installation
