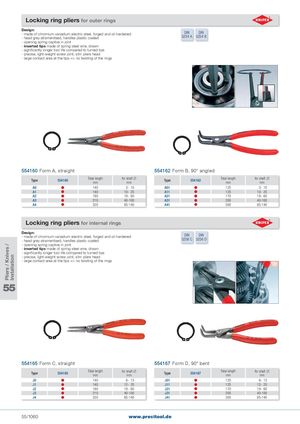

Общий каталог PRECITOOL - страница 1065

Locking ring pliers for outer rings Design:- made of chromium-vanadium electric steel, forged and oil-hardened- head grey atramentised, handles plastic coatedDINDIN5254 A5254 B - opening spring captive in joint - inserted tips made of spring steel wire, drawn - significantly longer tool life compared to turned tips - precise, light-weight screw joint, slim pliers head - large contact area at the tips => no twisting of the rings 554160 Form A, straight 554162 Form B, 90° angled Type 554160 Total length for shaft xmmmm Type 554162 Total length for shaft xmmmm A0  140 3- 10  A01  125 3- 10  A1  140 10- 25  A11  125 10- 25  A2  180 19- 60  A21  170 19- 60  A3  210 40-100  A31  200 40-100  A4  320 85-140  A41  300 85-140  Locking ring pliers for internal rings Design: - made of chromium-vanadium electric steel, forged and oil-hardened- head grey atramentised, handles plastic coatedDINDIN5256 C5256 D - opening spring captive in joint - inserted tips made of spring steel wire, drawn - significantly longer tool life compared to turned tips - precise, light-weight screw joint, slim pliers head - large contact area at the tips => no twisting of the rings 55 554165 Form C, straight 554167 Form D, 90° bent Type 554165 Total length for shaft xmmmm Type 554167 Total length for shaft xmmmm J0  140 8- 13  J01  125 8- 13  J1  140 12- 25  J11  125 12- 25  J2  180 19- 60  J21  170 19- 60  J3  210 40-100  J31  200 40-100  J4  320 85-140  J41  300 85-140  55/1060 www.precitool.de Pliers / Knives / Installation
