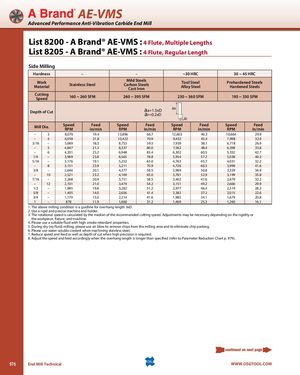

AE-VMS Advanced Performance Anti-Vibration Carbide End Mill List 8200 - A Brand® AE-VMS : 4 Flute, Multiple Lengths List 8205 - A Brand® AE-VMS : 4 Flute, Regular Length Side Milling Hardness – – ~30 HRC 30 ~ 45 HRC WorkMaterial Stainless Steel Mild SteelsCarbon SteelsCast Iron Tool Steel Prehardened SteelsAlloy SteelHardened Steels CuttingSpeed 160 ~ 260 SFM 260 ~ 395 SFM 230 ~ 360 SFM 195 ~ 330 SFM Depth of Cut aa=1.5xDar=0.2xD Mill Dia. SpeedRPM Feedin/min SpeedRPM Feedin/min SpeedRPM Feedin/min SpeedRPM Feedin/min – 3 8,079 19.4 13,896 66.7 12,603 40.3 10,664 29.9 – 4 6,059 21.8 10,422 70.9 9,452 45.4 7,998 32.0 3/16 – 5,089 18.3 8,753 59.5 7,939 38.1 6,718 26.9 – 5 4,847 21.3 8,337 80.0 7,562 48.4 6,398 35.8 – 6 4,201 25.2 6,948 83.4 6,302 60.5 5,332 42.7 1/4 – 3,969 23.8 6,565 78.8 5,954 57.2 5,038 40.3 5/16 – 3,176 19.1 5,252 63.0 4,763 45.7 4,031 32.2 – 8 3,151 23.9 5,211 70.9 4,726 60.5 3,999 41.6 3/8 – 2,646 20.1 4,377 59.5 3,969 50.8 3,359 34.9 – 10 2,521 23.2 4,169 65.0 3,781 52.9 3,199 35.8 7/16 – 2,268 20.9 3,751 58.5 3,402 47.6 2,879 32.2 – 12 2,101 21.0 3,474 54.2 3,151 49.2 2,666 29.9 1/2 – 1,985 19.8 3,282 51.2 2,977 46.4 2,519 28.2 5/8 – 1,405 14.0 2,656 41.4 2,382 37.2 2,015 22.6 3/4 – 1,170 15.0 2,214 41.6 1,985 34.1 1,679 20.8 1 – 878 11.9 1,660 31.2 1,469 25.3 1,260 16.1 1. The above milling condition is a guidline for overhang length 3xD. 2. Use a rigid and precise machine and holder. 3. The rotational speed is calculated by the median of the recommended cutting speed. Adjustments may be necessary depending on the rigidity or the workpiece, fixture, and machine. 4. Please use a suitable fluid with high smoke retardant properties. 5. During dry (no fluid) milling, please use air blow to remove chips from the milling area and to eliminate chip packing. 6. Please use water-soluble coolant when machining stainless steel. 7. Reduce speed and feed as well as depth of cut when high precision is required. 8. Adjust the speed and feed accordingly when the overhang length is longer than specified (refer to Parameter Reduction Chart p. 979). 976 End Mill Technical WWW.OSGTOOL.COM
