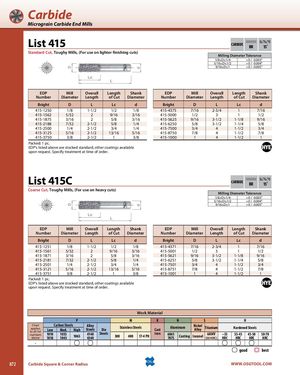

Общий каталог OSG 2018 - 2019 - страница 872

Carbide Micrograin Carbide End Mills List 415 CARBIDE BR 15˚ Standard Cut, Toughy Mills, (For use on lighter finishing cuts) Milling Diameter Tolerance 1/8≤D≤1/4 +0 / -0.003" 5/16≤D≤1/2 +0 / -0.004" 9/16≤D≤1 +0 / -0.005" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 415-1250 1/8 1-1/2 1/2 1/8 415-4375 7/16 2-3/4 1 7/16 415-1562 5/32 2 9/16 3/16 415-5000 1/2 3 1 1/2 415-1875 3/16 2 5/8 3/16 415-5625 9/16 3-1/2 1-1/8 9/16 415-2188 7/32 2-1/2 5/8 1/4 415-6250 5/8 3-1/2 1-1/4 5/8 415-2500 1/4 2-1/2 3/4 1/4 415-7500 3/4 4 1-1/2 3/4 415-3125 5/16 2-1/2 13/16 5/16 415-8750 7/8 4 1-1/2 7/8 415-3750 3/8 2-1/2 1 3/8 415-1000 1 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 415C CARBIDE BR 15˚ Coarse Cut, Toughy Mills, (For use on heavy cuts) Milling Diameter Tolerance 1/8≤D≤1/4 +0 / -0.003" 5/16≤D≤1/2 +0 / -0.004" 9/16≤D≤1 +0 / -0.005" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 415-1251 1/8 1-1/2 1/2 1/8 415-4371 7/16 2-3/4 1 7/16 415-1561 5/32 2 9/16 3/16 415-5001 1/2 3 1 1/2 415-1871 3/16 2 5/8 3/16 415-5621 9/16 3-1/2 1-1/8 9/16 415-2181 7/32 2-1/2 5/8 1/4 415-6251 5/8 3-1/2 1-1/4 5/8 415-2501 1/4 2-1/2 3/4 1/4 415-7501 3/4 4 1-1/2 3/4 415-3121 5/16 2-1/2 13/16 5/16 415-8751 7/8 4 1-1/2 7/8 415-3751 3/8 2-1/2 1 3/8 415-1001 1 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best 872 Carbide Square & Corner Radius WWW.OSGTOOL.COM
