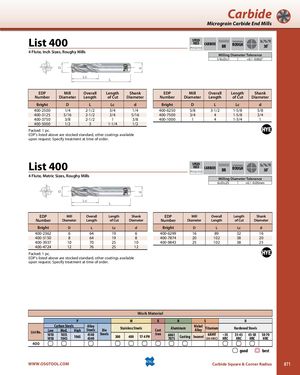

Общий каталог OSG 2018 - 2019 - страница 871

Carbide Micrograin Carbide End Mills List 400 SPEEDFEED CARBIDEP1112-1113BRROUGH 30˚ 4 Flute, Inch Sizes, Roughy Mills Milling Diameter Tolerance 1/4≤D≤1 +0 / -0.002" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 400-2500 1/4 2-1/2 3/4 1/4 400-6250 5/8 3-1/2 1-5/8 5/8 400-3125 5/16 2-1/2 3/4 5/16 400-7500 3/4 4 1-5/8 3/4 400-3750 3/8 2-1/2 1 3/8 400-1000 1 4 1-3/4 1 400-5000 1/2 3 1-1/4 1/2 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 400 SPEEDFEED CARBIDEP1112-1113BRROUGH 30˚ 4 Flute, Metric Sizes, Roughy Mills Milling Diameter Tolerance 6≤D≤25 +0 / -0.05mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 400-2362 6 64 19 6 400-6299 16 89 32 16 400-3150 8 64 19 8 400-7874 20 102 38 20 400-3937 10 70 25 10 400-9843 25 102 38 25 400-4724 12 76 25 12 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 400 good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 871
