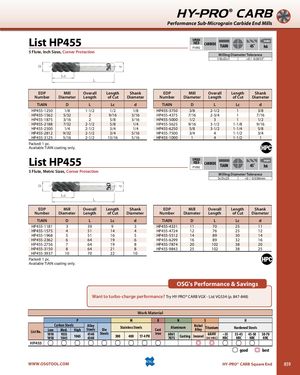

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP455 SPEEDFEEDP1092CARBIDETiAIN SHANK45˚h6 5 Flute, Inch Sizes, Corner Protection Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.0015" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter TiAlN D L Lc d TiAlN D L Lc d HP455-1250 1/8 1-1/2 1/2 1/8 HP455-3750 3/8 2-1/2 1 3/8 HP455-1562 5/32 2 9/16 3/16 HP455-4375 7/16 2-3/4 1 7/16 HP455-1875 3/16 2 5/8 3/16 HP455-5000 1/2 3 1 1/2 HP455-2188 7/32 2-1/2 5/8 1/4 HP455-5625 9/16 3-1/2 1-1/8 9/16 HP455-2500 1/4 2-1/2 3/4 1/4 HP455-6250 5/8 3-1/2 1-1/4 5/8 HP455-2812 9/32 2-1/2 3/4 5/16 HP455-7500 3/4 4 1-1/2 3/4 HP455-3125 5/16 2-1/2 13/16 5/16 HP455-1000 1 4 1-1/2 1 Packed: 1 pc. Available TiAlN coating only. List HP455 SPEEDFEEDP1092CARBIDETiAIN SHANK45˚h6 5 Flute, Metric Sizes, Corner Protection Milling Diameter Tolerance 3≤D≤25 +0 / -0.038mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter TiAlN D L Lc d TiAlN D L Lc d HP455-1181 3 39 9 3 HP455-4331 11 70 25 11 HP455-1575 4 51 14 4 HP455-4724 12 76 25 12 HP455-1968 5 51 16 5 HP455-5512 14 89 30 14 HP455-2362 6 64 19 6 HP455-6299 16 89 32 16 HP455-2756 7 64 19 8 HP455-7874 20 102 38 20 HP455-3150 8 64 21 8 HP455-9843 25 102 38 25 HP455-3937 10 70 22 10 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try HY-PRO® CARB VGX - List VG534 (p. 847-848) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP455 good best WWW.OSGTOOL.COM HY-PRO® CARB Square End 859
