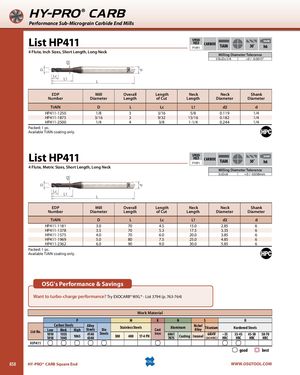

DD d2d2 dd HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP411 SPEEDFEEDP1091CARBIDE TiAIN SHANK30˚h6 4 Flute, Inch Sizes, Short Length, Long Neck Milling Diameter Tolerance 1/8≤D≤1/4 +0 / -0.0015" Lc L1 L EDP Mill Overall Length Neck Neck Shank Number Diameter Length of Cut Length Diameter Diameter TiAlN D L Lc L1 d2 d HP411-1250 1/8 3 3/16 5/8 0.119 1/4 HP411-1875 3/16 3 9/32 15/16 0.182 1/4 HP411-2500 1/4 4 3/8 1-1/4 0.244 1/4 Packed: 1 pc. Available TiAlN coating only. List HP411 SPEEDFEEDP1091CARBIDE TiAIN SHANK30˚h6 4 Flute, Metric Sizes, Short Length, Long Neck Milling Diameter Tolerance 3≤D≤6 +0 / -0.038mm Lc L1 L EDP Mill Overall Length Neck Neck Shank Number Diameter Length of Cut Length Diameter Diameter TiAlN D L Lc L1 d2 d HP411-1181 3.0 70 4.5 15.0 2.85 6 HP411-1378 3.5 70 5.3 17.5 3.35 6 HP411-1575 4.0 70 6.0 20.0 3.85 6 HP411-1969 5.0 80 7.5 25.0 4.85 6 HP411-2362 6.0 90 9.0 30.0 5.85 6 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3794 (p. 763-764) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP411 good best 858 HY-PRO® CARB Square End WWW.OSGTOOL.COM
