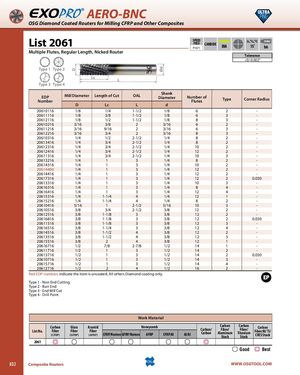

Общий каталог OSG 2018 - 2019 - страница 832

D Ød AERO-BNC OSG Diamond Coated Routers for Milling CFRP and Other Composites List 2061 SPEEDFEED CARBIDEP1071DIA SHANK15˚h6 Multiple Flutes, Regular Length, Nicked Router Tolerance +0/-0.002” Type 1 Type 2 Lc L Type 3 Type 4 EDP Mill Diameter Length of Cut OALNumber ShankDiameter Number ofFlutes Type Corner Radius D Lc L d 20610116 1/8 1/4 1-1/2 1/8 6 2 - 20611116 1/8 3/8 1-1/2 1/8 6 3 - 20612116 1/8 1/2 1-1/2 1/8 8 3 - 20610216 3/16 3/8 2 3/16 6 2 - 20611216 3/16 9/16 2 3/16 6 3 - 20612216 3/16 3/4 2 3/16 8 3 - 20610316 1/4 1/2 2-1/2 1/4 8 2 - 20613416 1/4 3/4 2-1/2 1/4 8 2 - 20612316 1/4 3/4 2-1/2 1/4 10 2 - 20612416 1/4 3/4 2-1/2 1/4 12 2 - 20611316 1/4 3/4 2-1/2 1/4 10 3 - 20613216 1/4 1 3 1/4 8 2 - 20614316 1/4 1 3 1/4 10 2 - 20614400 1/4 1 3 1/4 12 2 - 20614416 1/4 1 3 1/4 12 2 - 20617316 1/4 1 3 1/4 12 2 0.030 20613316 1/4 1 3 1/4 10 3 - 20616316 1/4 1 3 1/4 8 4 - 20616416 1/4 1 3 1/4 12 4 - 20615316 1/4 1-1/4 4 1/4 12 1 - 20615216 1/4 1-1/4 4 1/4 8 2 - 20610416 5/16 1 2-1/2 5/16 10 3 - 20610516 3/8 3/4 2-1/2 3/8 12 2 - 20612516 3/8 1-1/8 3 3/8 12 2 - 20616816 3/8 1-1/8 3 3/8 12 2 0.030 20611516 3/8 1-1/8 3 3/8 12 3 - 20616516 3/8 1-1/4 3 3/8 12 4 - 20614516 3/8 1-1/2 4 3/8 12 2 - 20613516 3/8 1-1/2 4 3/8 12 3 - 20615516 3/8 2 4 3/8 12 1 - 20616716 1/2 7/8 2-7/8 1/2 14 1 - 20611716 1/2 1 3 1/2 14 2 - 20613716 1/2 1 3 1/2 14 2 0.030 20610716 1/2 1 3 1/2 14 3 - 20615716 1/2 1 3 1/2 14 4 - 20612716 1/2 2 4 1/2 16 2 - Red EDP numbers indicate the item is uncoated. All others Diamond coating only. Type 1 - Non End Cutting Type 2 - Burr End Type 3 - End Mill Cut Type 4 - Drill Point Work Material Carbon Glass Aramid HoneycombList No.FiberFiberFiber(CFRP)(GFRP)(AFRP)CFRP/Nomex GFRP/NomexAFRPCFRP/AlAl/AlCarbon/CarbonCarbonFiber/AluminumStackCarbonFiber/TitaniumStackCarbonFiber/Al/ Ti/CRES Stack 2061 Good Best 832 Composite Routers WWW.OSGTOOL.COM
