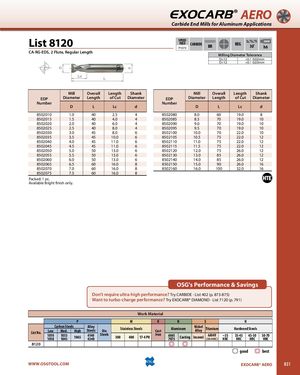

EXOCARB® AERO Carbide End Mills for Aluminum Applications List 8120 SPEEDFEED CARBIDEP1070BR SHANKREG30˚h6 CA-RG-EDS, 2 Flute, Regular Length Milling Diameter Tolerance D≤12 +0 / -0.02mm D>12 +0 / -0.03mm Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 8502010 1.0 40 2.5 4 8502080 8.0 60 19.0 8 8502015 1.5 40 4.0 4 8502085 8.5 70 19.0 10 8502020 2.0 40 6.0 4 8502090 9.0 70 19.0 10 8502025 2.5 40 8.0 4 8502095 9.5 70 19.0 10 8502030 3.0 45 8.0 6 8502100 10.0 70 22.0 10 8502035 3.5 45 10.0 6 8502105 10.5 75 22.0 12 8502040 4.0 45 11.0 6 8502110 11.0 75 22.0 12 8502045 4.5 45 11.0 6 8502115 11.5 75 22.0 12 8502050 5.0 50 13.0 6 8502120 12.0 75 26.0 12 8502055 5.5 50 13.0 6 8502130 13.0 85 26.0 12 8502060 6.0 50 13.0 6 8502140 14.0 85 26.0 12 8502065 6.5 60 16.0 8 8502150 15.0 90 26.0 16 8502070 7.0 60 16.0 8 8502160 16.0 100 32.0 16 8502075 7.5 60 16.0 8 Packed: 1 pc. Available Bright finish only. OSG's Performance & Savings Don't require ultra-high performance? Try CARBIDE - List 402 (p. 873-875) Want to turbo-charge performance? Try EXOCARB® DIAMOND - List 7120 (p. 791) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 8120 good best WWW.OSGTOOL.COM EXOCARB® AERO 831
