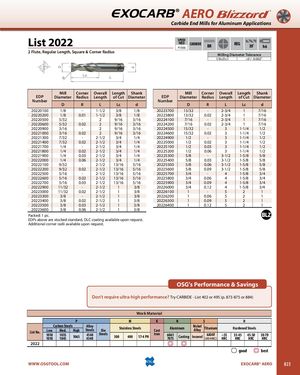

Общий каталог OSG 2018 - 2019 - страница 823

EXOCARB® AERO Blizzard ® Carbide End Mills for Aluminum Applications List 2022 SPEEDFEED CARBIDEP1066BR SHANKREG30˚h6 2 Flute, Regular Length, Square & Corner Radius Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" Mill Corner Overall Length Shank Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter EDP Diameter Radius Length of Cut Diameter Number Number D R L Lc d D R L Lc d 20220100 1/8 - 1-1/2 3/8 1/8 20223700 13/32 - 2-3/4 1 7/16 20220200 1/8 0.01 1-1/2 3/8 1/8 20223800 13/32 0.02 2-3/4 1 7/16 20220500 5/32 - 2 9/16 3/16 20224100 7/16 - 2-3/4 1 7/16 20220600 5/32 0.02 2 9/16 3/16 20224200 7/16 0.02 2-3/4 1 7/16 20220900 3/16 - 2 9/16 3/16 20224500 15/32 - 3 1-1/4 1/2 20221000 3/16 0.02 2 9/16 3/16 20224600 15/32 0.02 3 1-1/4 1/2 20221300 7/32 - 2-1/2 3/4 1/4 20224900 1/2 - 3 1-1/4 1/2 20221400 7/32 0.02 2-1/2 3/4 1/4 20225000 1/2 0.02 3 1-1/4 1/2 20221700 1/4 - 2-1/2 3/4 1/4 20225100 1/2 0.03 3 1-1/4 1/2 20221800 1/4 0.02 2-1/2 3/4 1/4 20225200 1/2 0.06 3 1-1/4 1/2 20221900 1/4 0.03 2-1/2 3/4 1/4 20225300 5/8 - 3-1/2 1-5/8 5/8 20222000 1/4 0.06 2-1/2 3/4 1/4 20225400 5/8 0.03 3-1/2 1-5/8 5/8 20222100 9/32 - 2-1/2 13/16 5/16 20225500 5/8 0.06 3-1/2 1-5/8 5/8 20222200 9/32 0.02 2-1/2 13/16 5/16 20225600 5/8 0.09 3-1/2 1-5/8 5/8 20222500 5/16 - 2-1/2 13/16 5/16 20225700 3/4 - 4 1-5/8 3/4 20222600 5/16 0.02 2-1/2 13/16 5/16 20225800 3/4 0.06 4 1-5/8 3/4 20222700 5/16 0.03 2-1/2 13/16 5/16 20225900 3/4 0.09 4 1-5/8 3/4 20222900 11/32 - 2-1/2 1 3/8 20226000 3/4 0.12 4 1-5/8 3/4 20223000 11/32 0.02 2-1/2 1 3/8 20226100 1 - 5 2 1 20223300 3/8 - 2-1/2 1 3/8 20226200 1 0.06 5 2 1 20223400 3/8 0.02 2-1/2 1 3/8 20226300 1 0.09 5 2 1 20223500 3/8 0.03 2-1/2 1 3/8 20226400 1 0.12 5 2 1 20223600 3/8 0.06 2-1/2 1 3/8 Packed: 1 pc. EDPs above are stocked standard, DLC coating available upon request. Additional corner radii available upon request. OSG's Performance & Savings Don't require ultra-high performance? Try CARBIDE - List 402 or 495 (p. 873-875 or 884) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2022 good best WWW.OSGTOOL.COM EXOCARB® AERO 823
