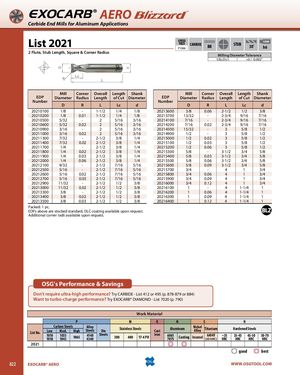

Общий каталог OSG 2018 - 2019 - страница 822

EXOCARB® AERO Blizzard ® Carbide End Mills for Aluminum Applications List 2021 SPEEDFEED CARBIDEP1066BR SHANKSTUB30˚h6 2 Flute, Stub Length, Square & Corner Radius Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" Mill Corner Overall Length Shank Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter EDP Diameter Radius Length of Cut Diameter Number Number D R L Lc d D R L Lc d 20210100 1/8 - 1-1/2 1/4 1/8 20213600 3/8 0.06 2-1/2 1/2 3/8 20210200 1/8 0.01 1-1/2 1/4 1/8 20213700 13/32 - 2-3/4 9/16 7/16 20210500 5/32 - 2 5/16 3/16 20214100 7/16 - 2-3/4 9/16 7/16 20210600 5/32 0.02 2 5/16 3/16 20214200 7/16 0.02 2-3/4 9/16 7/16 20210900 3/16 - 2 5/16 3/16 20214500 15/32 - 3 5/8 1/2 20211000 3/16 0.02 2 5/16 3/16 20214900 1/2 - 3 5/8 1/2 20211300 7/32 - 2-1/2 3/8 1/4 20215000 1/2 0.02 3 5/8 1/2 20211400 7/32 0.02 2-1/2 3/8 1/4 20215100 1/2 0.03 3 5/8 1/2 20211700 1/4 - 2-1/2 3/8 1/4 20215200 1/2 0.06 3 5/8 1/2 20211800 1/4 0.02 2-1/2 3/8 1/4 20215300 5/8 - 3-1/2 3/4 5/8 20211900 1/4 0.03 2-1/2 3/8 1/4 20215400 5/8 0.03 3-1/2 3/4 5/8 20212000 1/4 0.06 2-1/2 3/8 1/4 20215500 5/8 0.06 3-1/2 3/4 5/8 20212100 9/32 - 2-1/2 7/16 5/16 20215600 5/8 0.09 3-1/2 3/4 5/8 20212500 5/16 - 2-1/2 7/16 5/16 20215700 3/4 - 4 1 3/4 20212600 5/16 0.02 2-1/2 7/16 5/16 20215800 3/4 0.06 4 1 3/4 20212700 5/16 0.03 2-1/2 7/16 5/16 20215900 3/4 0.09 4 1 3/4 20212900 11/32 - 2-1/2 1/2 3/8 20216000 3/4 0.12 4 1 3/4 20213000 11/32 0.02 2-1/2 1/2 3/8 20216100 1 - 4 1-1/4 1 20213300 3/8 - 2-1/2 1/2 3/8 20216200 1 0.06 4 1-1/4 1 20213400 3/8 0.02 2-1/2 1/2 3/8 20216300 1 0.09 4 1-1/4 1 20213500 3/8 0.03 2-1/2 1/2 3/8 20216400 1 0.12 4 1-1/4 1 Packed: 1 pc. EDPs above are stocked standard, DLC coating available upon request. Additional corner radii available upon request. OSG's Performance & Savings Don't require ultra-high performance? Try CARBIDE - List 412 or 495 (p. 878-879 or 884) Want to turbo-charge performance? Try EXOCARB® DIAMOND - List 7020 (p. 790) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2021 good best 822 EXOCARB® AERO WWW.OSGTOOL.COM
