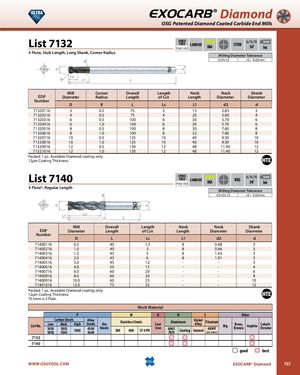

EXOCARB® Diamond OSG Patented Diamond Coated Carbide End Mills List 7132 SPEEDFEED CARBIDEP1052-1053DIA SHANKSTUB30˚h6 4 Flute, Stub Length, Long Shank, Corner Radius Milling Diameter Tolerance 3≤D≤12 +0 / -0.02mm Mill Corner Overall Length Neck Neck Shank EDP Diameter Radius Length of Cut Length Diameter Diameter Number D R L Lc L1 d2 d 71320116 3 0.5 75 3 15 2.85 3 71320216 4 0.5 75 4 20 3.80 4 71320316 6 0.5 100 6 30 5.70 6 71320416 6 1.0 100 6 30 5.70 6 71320516 8 0.5 100 8 30 7.60 8 71320616 8 1.0 100 8 32 7.60 8 71320716 10 0.5 125 10 40 9.50 10 71320816 10 1.0 125 10 40 9.50 10 71320916 12 0.5 150 12 48 11.40 12 71321016 12 1.0 150 12 48 11.40 12 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. List 7140 SPEEDFEED CARBIDEP1052-1053DIA SHANKREG30˚h6 4 Flute*, Regular Length Milling Diameter Tolerance 0.5≤D≤12 +0 / -0.02mm Mill Overall Length Neck Neck Shank EDP Diameter Length of Cut Length Diameter Diameter Number D L Lc L1 d2 d 71400116 0.5 40 1.5 8 0.48 3 71400216 1.0 40 3 8 0.96 3 71400316 1.5 45 5 8 1.43 3 71400416 2.0 45 6 8 1.91 3 71400516 3.0 45 12 - - 3 71400616 4.0 50 15 - - 4 71400716 6.0 60 20 - - 6 71400816 8.0 60 20 - - 8 71400916 10.0 60 25 - - 10 71401016 12.0 75 25 - - 12 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. *0.5mm is 2 flute. Work Material P M K N S Other Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitanium60617075CastingInconel6Al4V(30 HRC)MgBrass,BronzeGraphiteCobalt-Chrome 7132 7140 good best WWW.OSGTOOL.COM EXOCARB® Diamond 797
