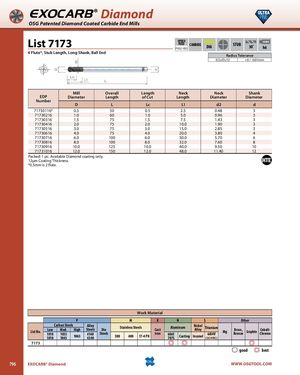

EXOCARB® Diamond OSG Patented Diamond Coated Carbide End Mills List 7173 SPEEDFEED CARBIDEP1052-1053DIA SHANKSTUB30˚h6 4 Flute*, Stub Length, Long Shank, Ball End Radius Tolerance 0.5≤D≤12 +0 / -0.01mm Mill Overall Length Neck Neck Shank EDP Diameter Length of Cut Length Diameter Diameter Number D L Lc L1 d2 d 71730116* 0.5 50 0.5 2.5 0.48 3 71730216 1.0 60 1.0 5.0 0.96 3 71730316 1.5 75 1.5 7.5 1.43 3 71730416 2.0 75 2.0 10.0 1.90 3 71730516 3.0 75 3.0 15.0 2.85 3 71730616 4.0 75 4.0 20.0 3.80 4 71730716 6.0 100 6.0 30.0 5.70 6 71730816 8.0 100 8.0 32.0 7.60 8 71730916 10.0 125 10.0 40.0 9.50 10 71731016 12.0 150 12.0 48.0 11.40 12 Packed: 1 pc. Available Diamond coating only. 12µm Coating Thickness. *0.5mm is 2 flute. Work Material P M K N S Other Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitanium60617075CastingInconel6Al4V(30 HRC)MgBrass,BronzeGraphiteCobalt-Chrome 7173 good best 796 EXOCARB® Diamond WWW.OSGTOOL.COM
