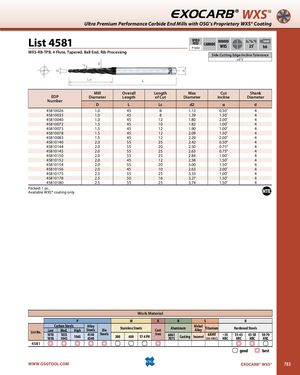

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4581 SPEEDFEEDP1044CARBIDE WXS SHANK25˚h6 WXS-RB-TPB, 4 Flute, Tapered, Ball End, Rib Processing Side Cutting Edge Incline Tolerance ±0˚5’ Mill Overall Length Max Cut Shank EDP Diameter Length of Cut Diameter Incline Diameter Number D L Lc d2 α d 45810026 1.0 45 8 1.13 0.50˚ 4 45810035 1.0 45 8 1.39 1.50˚ 4 45810040 1.0 45 12 1.80 2.00˚ 4 45810072 1.5 45 10 1.82 1.00˚ 4 45810073 1.5 45 12 1.90 1.00˚ 4 45810078 1.5 45 12 2.09 1.50˚ 4 45810083 1.5 45 12 2.29 2.00˚ 4 45810140 2.0 55 25 2.42 0.50° 4 45810144 2.0 55 20 2.50 0.75° 4 45810145 2.0 55 25 2.63 0.75° 4 45810150 2.0 55 25 2.84 1.00˚ 4 45810152 2.0 45 12 2.58 1.50˚ 4 45810154 2.0 55 20 3.00 1.50˚ 4 45810156 2.0 45 10 2.63 2.00˚ 4 45810175 2.5 55 25 3.33 1.00˚ 4 45810178 2.5 50 16 3.27 1.50˚ 4 45810180 2.5 55 25 3.74 1.50˚ 4 Packed: 1 pc. Available WXS® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4581 good best WWW.OSGTOOL.COM EXOCARB® WXS® 783
