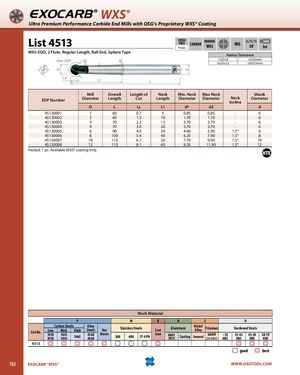

EXOCARB® WXS® Ultra Premium Performance Carbide End Mills with OSG’s Proprietary WXS® Coating List 4513 SPEEDFEEDP1043CARBIDE WXS SHANKREG30˚h6 WXS-EQD, 2 Flute, Regular Length, Ball End, Sphere Type Radius Tolerance 1≤D≤4 ±0.05mm 6≤D≤12 ±0.015mm Mill Overall Length of Neck Min. Neck Max Neck Shank EDP Number Diameter Length Cut Length Diameter Diameter Neck DiameterIncline D L Lc L1 d1 d2 d 45130001 1 60 0.7 5 0.85 0.85 - 6 45130002 2 60 1.5 10 1.70 1.70 - 6 45130003 3 70 2.3 15 2.70 2.70 - 6 45130004 4 70 3.0 20 3.70 3.70 - 6 45130005 6 90 4.0 30 4.60 5.90 1.5° 6 45130006 8 100 5.4 40 6.20 7.90 1.5° 8 45130007 10 110 6.7 50 7.70 9.90 1.5° 10 45130008 12 110 8.1 60 9.20 11.90 1.5° 12 Packed: 1 pc. Available WXS® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 4513 good best 782 EXOCARB® WXS® WWW.OSGTOOL.COM
