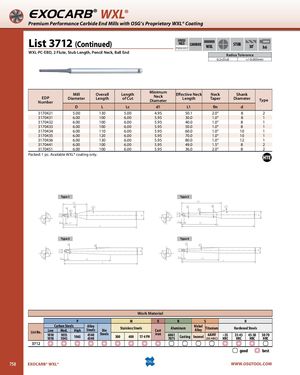

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3712 (Continued) SPEEDFEED CARBIDEP1010-1017WXL SHANKSTUB30˚h6 WXL-PC-EBD, 2 Flute, Stub Length, Pencil Neck, Ball End Radius Tolerance 0.2≤D≤6 +/-0.005mm EDPNumber Mill Overall LengthDiameterLengthof CutMinimumNeckDiameterEffective NeckLength NeckTaper ShankDiameter Type D L Lc d1 L1 θn d 3170421 5.00 130 5.00 4.95 50.1 2.0° 8 2 3170431 6.00 100 6.00 5.95 30.0 1.0° 8 1 3170432 6.00 100 6.00 5.95 40.0 1.0° 8 1 3170433 6.00 100 6.00 5.95 50.0 1.0° 8 1 3170434 6.00 110 6.00 5.95 60.0 1.0° 10 1 3170435 6.00 120 6.00 5.95 70.0 1.0° 10 1 3170436 6.00 130 6.00 5.95 80.0 1.0° 12 1 3170441 6.00 100 6.00 5.95 49.0 1.5° 8 2 3170451 6.00 100 6.00 5.95 36.0 2.0° 8 2 Packed: 1 pc. Available WXL® coating only. Type 1 Type 2 L2 L2 Lc L1 L Lc L1 L Type 3 Type 4 Lc L1 Lc L1 L L Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3712 good best 758 EXOCARB® WXL® WWW.OSGTOOL.COM DD d1 θnd1 d2 θn dd D D d1d1 θnθn d2 dd 15° 15°
