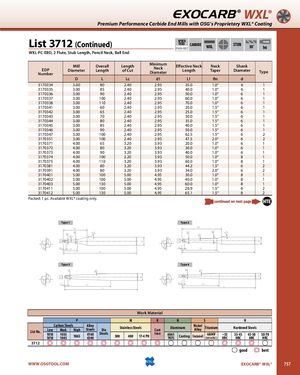

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3712 (Continued) SPEEDFEED CARBIDEP1010-1017WXL SHANKSTUB30˚h6 WXL-PC-EBD, 2 Flute, Stub Length, Pencil Neck, Ball End EDPNumber Mill Overall LengthDiameterLengthof Cut MinimumNeckDiameterEffective NeckLength NeckTaper ShankDiameter Type D L Lc d1 L1 θn d 3170334 3.00 80 2.40 2.95 35.0 1.0° 6 1 3170335 3.00 85 2.40 2.95 40.0 1.0° 6 1 3170336 3.00 90 2.40 2.95 50.0 1.0° 6 1 3170337 3.00 100 2.40 2.95 60.0 1.0° 6 1 3170338 3.00 110 2.40 2.95 70.0 1.0° 6 1 3170341 3.00 60 2.40 2.95 20.0 1.5° 6 1 3170342 3.00 65 2.40 2.95 25.0 1.5° 6 1 3170343 3.00 70 2.40 2.95 30.0 1.5° 6 1 3170344 3.00 80 2.40 2.95 35.0 1.5° 6 1 3170345 3.00 85 2.40 2.95 40.0 1.5° 6 1 3170346 3.00 90 2.40 2.95 50.0 1.5° 6 1 3170347 3.00 100 2.40 2.95 62.5 1.5° 6 2 3170351 3.00 100 2.40 2.95 47.5 2.0° 6 2 3170371 4.00 65 3.20 3.93 20.0 1.0° 6 1 3170372 4.00 80 3.20 3.93 30.0 1.0° 6 1 3170373 4.00 90 3.20 3.93 40.0 1.0° 6 1 3170374 4.00 100 3.20 3.93 50.0 1.0° 8 1 3170375 4.00 110 3.20 3.93 60.0 1.0° 8 1 3170381 4.00 80 3.20 3.93 44.2 1.5° 6 2 3170391 4.00 80 3.20 3.93 34.0 2.0° 6 2 3170401 5.00 100 5.00 4.95 30.0 1.0° 8 1 3170402 5.00 100 5.00 4.95 40.0 1.0° 8 1 3170403 5.00 130 5.00 4.95 60.0 1.0° 8 1 3170411 5.00 100 5.00 4.95 26.9 1.5° 6 2 3170412 5.00 130 5.00 4.95 65.1 1.5° 8 2 Packed: 1 pc. Available WXL® coating only. Type 1 Type 2 L2 L2 Lc L1 L Lc L1 L Type 3 Type 4 Lc L1 Lc L1 L L Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3712 good best WWW.OSGTOOL.COM EXOCARB® WXL® 757 DD d1 θnd1 d2 θn dd D D d1d1 θnθn d2 dd 15° 15°
