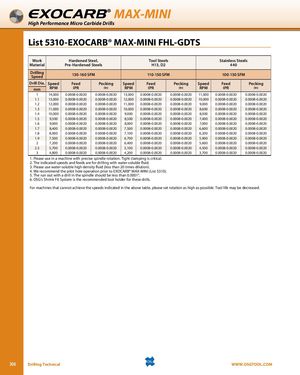

EXOCARB® MAX-MINI High Performance Micro Carbide Drills List 5310-EXOCARB® MAX-MINI FHL-GDTS Work Hardened Steel, Tool Steels Stainless Steels Material Pre-Hardened Steels H13, D2 440 DrillingSpeed 130-160 SFM 110-150 SFM 100-130 SFM Drill Dia. Speed Feed Pecking Speed Feed Pecking Speed Feed Pecking mm RPM IPR (In) RPM IPR (In) RPM IPR (In) 1 14,000 0.0008-0.0020 0.0008-0.0020 13,000 0.0008-0.0020 0.0008-0.0020 11,000 0.0008-0.0020 0.0008-0.0020 1.1 13,000 0.0008-0.0020 0.0008-0.0020 12,000 0.0008-0.0020 0.0008-0.0020 10,000 0.0008-0.0020 0.0008-0.0020 1.2 12,000 0.0008-0.0020 0.0008-0.0020 11,000 0.0008-0.0020 0.0008-0.0020 9,000 0.0008-0.0020 0.0008-0.0020 1.3 11,000 0.0008-0.0020 0.0008-0.0020 10,000 0.0008-0.0020 0.0008-0.0020 8,600 0.0008-0.0020 0.0008-0.0020 1.4 10,000 0.0008-0.0020 0.0008-0.0020 9,000 0.0008-0.0020 0.0008-0.0020 8,000 0.0008-0.0020 0.0008-0.0020 1.5 9,500 0.0008-0.0020 0.0008-0.0020 8,500 0.0008-0.0020 0.0008-0.0020 7,400 0.0008-0.0020 0.0008-0.0020 1.6 9,000 0.0008-0.0020 0.0008-0.0020 8,000 0.0008-0.0020 0.0008-0.0020 7,000 0.0008-0.0020 0.0008-0.0020 1.7 8,400 0.0008-0.0020 0.0008-0.0020 7,500 0.0008-0.0020 0.0008-0.0020 6,600 0.0008-0.0020 0.0008-0.0020 1.8 8,000 0.0008-0.0020 0.0008-0.0020 7,100 0.0008-0.0020 0.0008-0.0020 6,200 0.0008-0.0020 0.0008-0.0020 1.9 7,500 0.0008-0.0020 0.0008-0.0020 6,700 0.0008-0.0020 0.0008-0.0020 5,900 0.0008-0.0020 0.0008-0.0020 2 7,200 0.0008-0.0020 0.0008-0.0020 6,400 0.0008-0.0020 0.0008-0.0020 5,600 0.0008-0.0020 0.0008-0.0020 2.5 5,700 0.0008-0.0020 0.0008-0.0020 5,100 0.0008-0.0020 0.0008-0.0020 4,500 0.0008-0.0020 0.0008-0.0020 3 4,800 0.0008-0.0020 0.0008-0.0020 4,200 0.0008-0.0020 0.0008-0.0020 3,700 0.0008-0.0020 0.0008-0.0020 1. Please use in a machine with precise spindle rotation. Tight clamping is critical. 2. The indicated speeds and feeds are for drilling with water-soluble fluid. 3. Please use water-soluble high density fluid (less than 20 times dilution). 4. We recommend the pilot hole operation prior to EXOCARB® MAX-MINI (List 5310). 5. The run out with a drill in the spindle should be less than 0.0001”. 6. OSG’s Shrink Fit System is the recommended tool holder for these drills. For machines that cannot achieve the speeds indicated in the above table, please set rotation as high as possible. Tool life may be decreased. 306 Drilling Technical WWW.OSGTOOL.COM
