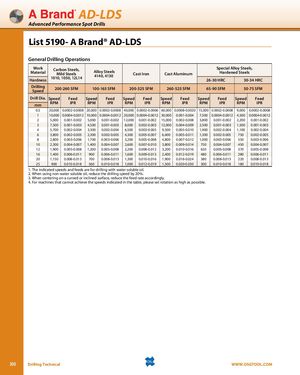

AD-LDS Advanced Performance Spot Drills List 5190- A Brand® AD-LDS General Drilling Operations WorkMaterial Carbon Steels,Mild SteelsHardness1010, 1050, 12L14Alloy Steels4140, 4130 Special Alloy Steels,Cast IronCast AluminumHardened Steels26-30 HRC30-34 HRC DrillingSpeed 200-260 SFM 100-165 SFM 200-325 SFM 260-525 SFM 65-90 SFM 50-75 SFM Drill Dia. Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed mm RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR 0.5 20,000 0.0002-0.0008 20,000 0.0002-0.0008 40,000 0.0002-0.0006 60,000 0.0008-0.0020 15,000 0.0002-0.0008 9,000 0.0002-0.0008 1 10,000 0.0004-0.0012 10,000 0.0004-0.0012 20,000 0.0004-0.0012 30,000 0.001-0.004 7,500 0.0004-0.0012 4,500 0.0004-0.0012 2 5,000 0.001-0.002 5,000 0.001-0.002 12,000 0.001-0.002 15,000 0.002-0.008 3,800 0.001-0.002 2,200 0.001-0.002 3 7,500 0.001-0.003 4,500 0.001-0.003 8,000 0.002-0.003 12,000 0.004-0.009 2,500 0.001-0.003 1,500 0.001-0.003 4 5,700 0.002-0.004 3,300 0.002-0.004 6,500 0.003-0.005 9,500 0.005-0.010 1,900 0.002-0.004 1,100 0.002-0.004 6 3,800 0.002-0.005 2,300 0.002-0.005 4,300 0.005-0.007 6,400 0.005-0.011 1,300 0.002-0.005 750 0.002-0.005 8 2,800 0.003-0.006 1,700 0.003-0.006 3,200 0.005-0.008 4,800 0.007-0.012 1,000 0.003-0.006 550 0.003-0.006 10 2,300 0.004-0.007 1,400 0.004-0.007 2,600 0.007-0.010 3,800 0.009-0.014 750 0.004-0.007 450 0.004-0.007 12 1,900 0.005-0.008 1,200 0.005-0.008 2,200 0.008-0.012 3,200 0.010-0.016 650 0.005-0.008 370 0.005-0.008 16 1,400 0.006-0.011 900 0.006-0.011 1,600 0.009-0.013 2,400 0.012-0.019 480 0.006-0.011 280 0.006-0.011 20 1,150 0.008-0.013 700 0.008-0.013 1,300 0.010-0.016 1,900 0.016-0.024 380 0.008-0.013 220 0.008-0.013 25 900 0.010-0.018 560 0.010-0.018 1,000 0.012-0.019 1,500 0.020-0.030 300 0.010-0.018 180 0.010-0.018 1. The indicated speeds and feeds are for drilling with water soluble oil. 2. When using non-water soluble oil, reduce the drilling speed by 20%. 3. When centering on a curved or inclined surface, reduce the feed rate accordingly. 4. For machines that cannot achieve the speeds indicated in the table, please set rotation as high as possible. 300 Drilling Technical WWW.OSGTOOL.COM
