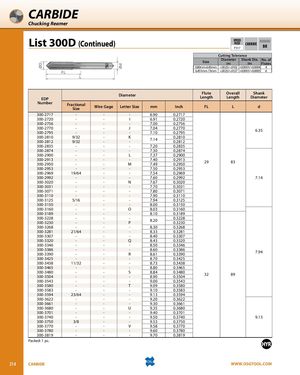

ØD Ød CARBIDE Chucking Reamer List 300D (Continued) SPEEDFEEDCARBIDEP317 BR Cutting Tolerance Size Diameter Shank Dia. No. of(in)(In)Flutes 0.80mm-6.45mm +.0025/+.0102 +0.0001/+0.0004 4 FL 6.451mm-13mm +.0025/+.0127 +0.0001/+0.0005 6 L EDP Diameter Flute Overall ShankLengthLengthDiameter Number FractionalSizeWire Gage Letter Size mm Inch FL L d 300-2717 - - - 6.90 0.2717 300-2720 - - I 6.91 0.2720 300-2756 - - - 7.00 0.2756 300-2770 - - J 7.04 0.2770300-2795---7.100.2795 6.35 300-2810 9/32 -300-28129/32-K- 7.14 0.28100.2812 300-2835 - - - 7.20 0.2835 300-2874 - - - 7.30 0.2874 300-2900 - - L 7.37 0.2900 300-2913 -300-2950- -- -M 7.40 0.29137.490.295029 83 300-2953 - - - 7.50 0.2953 300-2969 19/64 - - 7.54 0.2969 300-2992 - - - 7.60 0.2992 7.14 300-3020 - - N 7.67 0.3020 300-3031 - - - 7.70 0.3031 300-3071 - - - 7.80 0.3071 300-3110 - - - 7.90 0.3110 300-3125 5/16 - - 7.94 0.3125 300-3150 - - - 8.00 0.3150 300-3160 - - O 8.03 0.3160 300-3189 - - - 8.10 0.3189 300-3228 -300-3230- -- -P 8.20 0.32280.3230 300-3268 - - - 8.30 0.3268 300-3281 21/64 - - 8.33 0.3281 300-3307 - - - 8.40 0.3307 300-3320 - - Q 8.43 0.3320 300-3346 - - - 8.50 0.3346 300-3386 - - - 8.60 0.3386300-3390--R8.610.3390 7.94 300-3425 - - - 8.70 0.3425 300-3438 11/32 - - 8.73 0.3438 300-3465 - - - 8.80 0.3465 300-3480 -300-3504- -- S- 8.84 0.34808.900.350432 89 300-3543 - - - 9.00 0.3543 300-3580 - - T 9.09 0.3580 300-3583 - - - 9.10 0.3583 300-3594 23/64 - - 9.13 0.3594 300-3622 - - - 9.20 0.3622 300-3661 - - - 9.30 0.3661 300-3680 - - U 9.35 0.3680 300-3701 - - - 9.40 0.3701 300-3740 - - - 9.50 0.3740 9.13 300-3750 3/8 - - 9.53 0.3750 300-3770 - - V 9.58 0.3770 300-3780 - - - 9.60 0.3780 300-3819 - - - 9.70 0.3819 Packed: 1 pc. 214 CARBIDE WWW.OSGTOOL.COM
