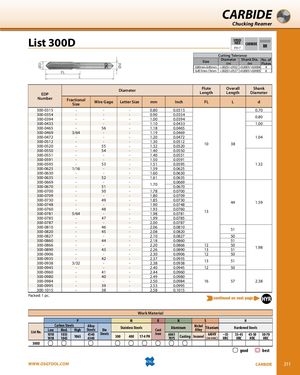

List 300D

SPEED

FEED CARBIDE BR

P317 Cutting Tolerance

Diameter Shank Dia. No. of

Size Flutes (in) (In) 0.80mm-6.45mm +.0025/+.0102 +0.0001/+0.0004 4

FL 6.451mm-13mm +.0025/+.0127 +0.0001/+0.0005 6

L

	Diameter	Flute	Overall	Shank
EDP		Length	Length	Diameter

Number Fractional

	Size	Wire Gage	Letter Size	mm	Inch	FL	L	d
300-0315	-	-	-	0.80	0.0315			0.70
300-0354	-	-	-	0.90	0.0354
300-0394	-	-	-	1.00	0.0394			0.80
300-0433	-	-	-	1.10	0.0433			1.00
300-0465	-	56	-	1.18	0.0465
300-0469	3/64	-	-	1.19	0.0469
300-0472	-	-	-	1.20	0.0472			1.04
300-0512	-	-	-	1.30	0.0512
300-0520	-	55	-	1.32	0.0520	10	38
300-0550	-	54	-	1.40	0.0550
300-0551	-	-	-	1.40	0.0551
300-0591	-	-	-	1.50	0.0591
300-0595	-	53	-	1.51	0.0595			1.32
300-0625	1/16	-	-	1.59	0.0625
300-0630	-	-	-	1.60	0.0630
300-0635	-	52	-	1.61	0.0635
300-0669	-	-	-	1.70	0.0669
300-0670	-	51	-		0.0670
300-0700	-	50	-	1.78	0.0700
300-0709	-	-	-	1.80	0.0709
300-0730	-	49	-	1.85	0.0730		44	1.59
300-0748	-	-	-	1.90	0.0748
300-0760	-	48	-	1.93	0.0760	13
300-0781	5/64	-	-	1.98	0.0781
300-0785	-	47	-	1.99	0.0785
300-0787	-	-	-	2.00	0.0787
300-0810	-	46	-	2.06	0.0810
300-0820	-	45	-	2.08	0.0820		51
300-0827	-	-	-	2.10	0.0827		50
300-0860	-	44	-	2.18	0.0860		51
300-0866	-	-	-	2.20	0.0866	12	50
300-0890	-	43	-	2.26	0.0890	13	51	1.98
300-0906	-	-	-	2.30	0.0906	12	50
300-0935	-	42	-	2.37	0.0935
300-0938	3/32	-	-	2.38	0.0938	13	51
300-0945	-	-	-	2.40	0.0945	12	50
300-0960	-	41	-	2.44	0.0960
300-0980	-	40	-	2.49	0.0980
300-0984	-	-	-	2.50	0.0984	16	57	2.38
300-0995	-	39	-	2.53	0.0995
300-1015	-	38	-	2.58	0.1015

Packed: 1 pc.

Work Material

P M K N S H

Carbon Steels Alloy Stainless Steels Aluminum Nickel Hardened Steels

List No.	Low	Med.	High	Steels	Die				Cast		Alloy Titanium
	1010	1035		4140	Steels				Iron	6061		6Al4V	~35	35-45	45-50	50-70
	1018	1045	1065	4340		300	400	17-4 PH		7075 Casting Inconel			HRC	HRC	HRC	HRC

(30 HRC)
