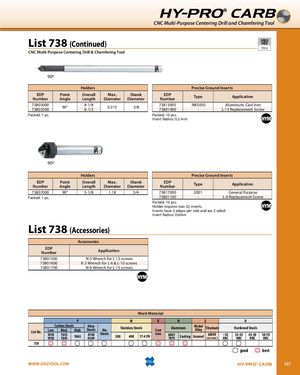

CNC Multi-Purpose Centering Drill & Chamfering Tool
SPEED FEED P314
90º Holders Precise Ground Inserts
| EDP | Point | Overall | Max. | Shank | EDP | Type | Application | |||||
| Number | Angle | Length | Diameter | Diameter | Number | |||||||
| 73803000 | 90° | 4-1/8 | 0.315 | 3/8 | 73813005 | NK5050 | Aluminum, Cast Iron | |||||
| 73803500 | 6-1/2 | 73801400 | - | L-13 Replacement Screw |
Packed: 1 pc. Packed: 10 pcs. Insert Radius: 0.2 mm
90º Holders Precise Ground Inserts
| EDP | Point | Overall | Max. | Shank | EDP | Type | Application | |||||
| Number | Angle | Length | Diameter | Diameter | Number | |||||||
| 73807000 | 90° | 5-1/8 | 1.18 | 3/4 | 73817000 | 2001 | General Purpose | |||||
| Packed: 1 pc. | 73801100 | - | L-6 Replacement Screw |
Packed: 10 pcs. Holder requires two (2) inserts. Inserts have 3 edges per side and are 2 sided. Insert Radius: 0.6mm
List 738 (Accessories)
Accessories EDP Application Number 73801500 N-5 Wrench for L-13 screws 73801600 K-3 Wrench for L-6 & L-10 screws 73801700 N-6 Wrench for L-15 screws
Work Material
P M K N S H
Carbon Steels Alloy Nickel
| Low | Med. | High | Steels | Die | Stainless Steels | Cast | Aluminum | Alloy Titanium | Hardened Steels | ||||||||
| List No. | Steels | Iron | |||||||||||||||
| 1010 | 1035 | 1065 | 4140 | 300 | 400 | 17-4 PH | 6061 | 6Al4V | ~35 | 35-45 | 45-50 | 50-70 | |||||
| 1018 | 1045 | 4340 | 7075 Casting Inconel | (30 HRC) | HRC | HRC | HRC | HRC |
